NCR125W-125M
SCR
Rev.01 - 24 September 2019
Product data sheet

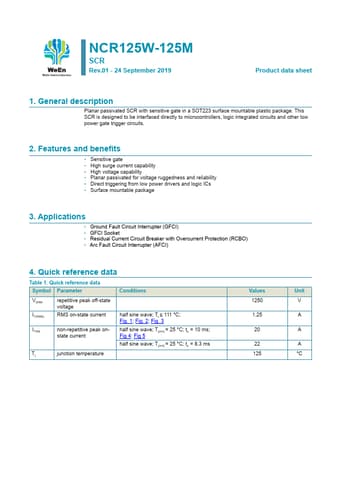

1. General description
Planar passivated SCR with sensitive gate in a SOT223 surface mountable plastic package. This
SCR is designed to be interfaced directly to microcontrollers, logic integrated circuits and other low
power gate trigger circuits.
2. Features and benefits
Sensitive gate
High surge current capability
High voltage capability
Planar passivated for voltage ruggedness and reliability
Direct triggering from low power drivers and logic ICs
Surface mountable package
3. Applications
Ground Fault Circuit Interrupter (GFCI)
GFCI Socket
Residual Current Circuit Breaker with Overcurrent Protection (RCBO)
Arc Fault Circuit Interrupter (AFCI)
4. Quick reference data
Table 1. Quick reference data
Symbol Parameter
Conditions
VDRM
IT(RMS)
ITSM
repetitive peak off-state
voltage
RMS on-state current
non-repetitive peak on-
state current
half sine wave; Tc ≤ 111 °C;
Fig. 1; Fig. 2; Fig. 3
half sine wave; Tj(init) = 25 °C; tp = 10 ms;
Fig 4; Fig 5
half sine wave; Tj(init) = 25 °C; tp = 8.3 ms
Tj
junction temperature
Values
Unit
1250
V
1.25
A
20
A
22
A
125
°C




WeEn

NCR125W-125M Datasheet Preview

NCR125W-125M Datasheet

SCR

No Preview Available !

WeEn Semiconductors
NCR125W-125M
SCR
Symbol Parameter
Static characteristics
IGT
gate trigger current
IH
holding current
VT
on-state voltage
Dynamic characteristics
dVD/dt
rate of rise of off-state
voltage
Conditions
VD = 12 V; RL = 140 Ω; Tj = 25 °C; Fig. 8
VD = 12 V; RGK = 220 Ω; Tj = 25 °C; Fig. 10
IT = 2.5 A; Tj = 25 °C; Fig. 11
VDM = 838 V; Tj = 125 °C; RGK = 220 Ω;
(VDM = 67% of VDRM); exponential waveform
Min Typ Max Unit
1
-
-
-
-
-
100 μA
10 mA
1.5 V
200 -
-
V/μs
5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
1
K
cathode
2
A
anode
3
G
gate
4
A
mounting base; connected
to anode
Simplified outline
4
123
Graphic symbol
A
K
G
sym037
6. Ordering information
Table 3. Ordering information
Type number
NCR125W-125M
Package Orderable part number
Name
SOT223 NCR125W-125MX
Packing
method
Reel
Small packing
quantity
1000
Package
version
SOT223
Package
issue date
16-Mar-2006
7. Marking
Table 4. Marking codes
Type number
NCR125W-125M
Marking codes
125-125M
NCR125W-125M
Product data sheet
All information provided in this document is subject to legal disclaimers.
24 September 2019
© WeEn Semiconductors Co., Ltd. 2019. All rights reserved
2 / 12
