SMBJ11CA, SMBJ5.0A - 600W Transient Voltage Suppressor

WeEn

The SMBJ11CA by WeEn is a 600W Transient Voltage Suppressor. Below is the official datasheet preview.

📥 Download Datasheet

SMBJ11CA 600W Transient Voltage Suppressor by WeEn - Datasheet Preview — Official preview page of the **SMBJ11CA** 600W Transient Voltage Suppressor datasheet (WeEn).

Datasheet Details

Part number	SMBJ11CA, SMBJ5.0A
Manufacturer	WeEn
File Size	600.71 KB
Description	600W Transient Voltage Suppressor
Datasheet	SMBJ5.0A-WeEn.pdf
Note	This datasheet PDF includes multiple part numbers: SMBJ11CA, SMBJ5.0A. Please refer to the document for exact specifications by model.

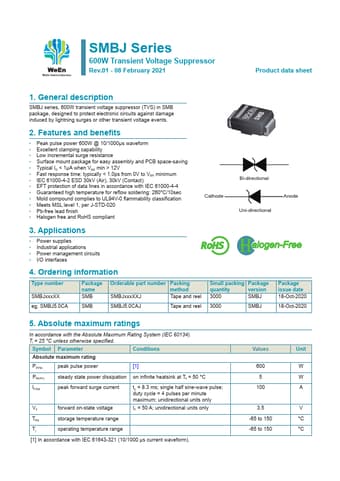

Additional preview pages of the SMBJ11CA datasheet.

SMBJ11CA Product details

Description

SMBJ series, 600W transient voltage suppressor (TVS) in SMB package, designed to protect electronic circuits against damage induced by lightning surges or other transient voltage events.

Features

Peak pulse power 600W @ 10/1000μs waveform.
Excellent clamping capability.
Low incremental surge resistance.
Surface mount package for easy assembly and PCB space-saving.
Typical IR < 1μA when VBR min > 12V.
Fast response time: typically < 1.0ps from 0V to VBR minimum.
IEC 61000-4-2 ESD 30kV (Air), 30kV (Contact).
EFT protection of data lines in accordance with IEC 61000-4-4.
Guaranteed high temperature for reflow.
