TYN50W-1600T - SCR

Description

Planar passivated Silicon Controlled Rectifier in a TO247 plastic package intended for use in applications requiring very high inrush current capability，high thermal cycling performance and high junction temperature capability (Tj(max) = 150 °C).

2.

Features

  • High junction operating temperature capability (Tj(max) = 150 °C).
  • Very high current surge capability.
  • Planar passivated for voltage ruggedness and reliability.
  • High thermal cycling performance.
  • High voltage capability 3.

📥 Download Datasheet

📁 Similar Datasheet

  • TYN-280P6 - Photovoltaic Module (tynsolar)
  • TYN0510 - SCR (ST Microelectronics)
  • TYN0512 - HIGH SURGE CAPABILITY HIGH ON-STATE CURRENT HIGH STABILITY AND RELIABILITY (STMicroelectronics)
  • TYN056 - Silicon controlled rectifiers (STMicroelectronics)
  • TYN058 - Silicon controlled rectifiers (STMicroelectronics)
  • TYN1006 - 6A SCR (STMicroelectronics)
  • TYN1010 - SCR (STMicroelectronics)
  • TYN1012 - Standard 12A SCRs (STMicroelectronics)
  • TYN1012RG - Standard 12A SCRs (STMicroelectronics)
  • TYN1012TRG - Standard 12A SCRs (STMicroelectronics)
Other Datasheets by WeEn

Full PDF Text Transcription

Click to expand full text

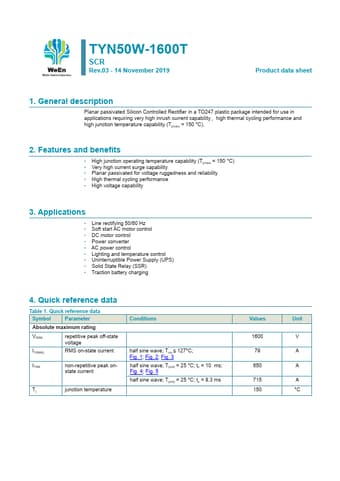

TYN50W-1600T SCR Rev.03 - 14 November 2019 Product data sheet 1. General description Planar passivated Silicon Controlled Rectifier in a TO247 plastic package intended for use in applications requiring very high inrush current capability，high thermal cycling performance and high junction temperature capability (Tj(max) = 150 °C). 2. Features and benefits • High junction operating temperature capability (Tj(max) = 150 °C) • Very high current surge capability • Planar passivated for voltage ruggedness and reliability • High thermal cycling performance • High voltage capability 3.
