Datasheet Summary

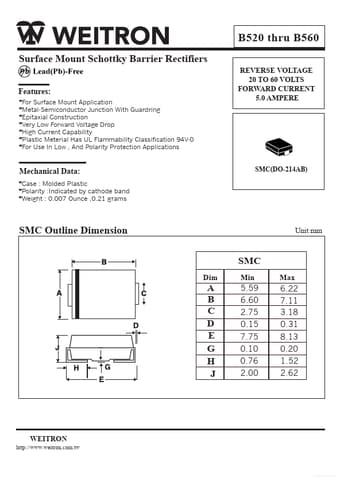

B520 thru B560
Surface Mount Schottky Barrier Rectifiers
Features
:
- For Surface Mount Application
- Metal-Semiconductor Junction With Guardring
- Epitaxial Construction
- Very Low Forward Voltage Drop
- High Current Capability
- Plastic Meterial Has UL Flammability Classification 94V-0
- For Use In Low , And Polarity Protection Applications
REVERSE VOLTAGE 20 TO 60 VOLTS FORWARD CURRENT 5.0 AMPERE
Mechanical Data:
- Case : Molded Plastic
- Polarity :Indicated by cathode band
- Weight : 0.007 Ounce ,0.21 grams
SMC(DO-214AB)
SMC Outline Dimension
Dim
Unit:mm
A B C D E G H J
Min
Max
5.59 6.60 2.75 0.15 7.75 0.10 0.76 2.00
6.22 7.11 3.18 0.31 8.13 0.20 1.52 2.62
WEITRON http://.weitron....
