W91433N
W91433N is 13-MEMORY TONE/PULSE DIALER manufactured by Winbond.
- Part of the W91430N comparator family.
- Part of the W91430N comparator family.

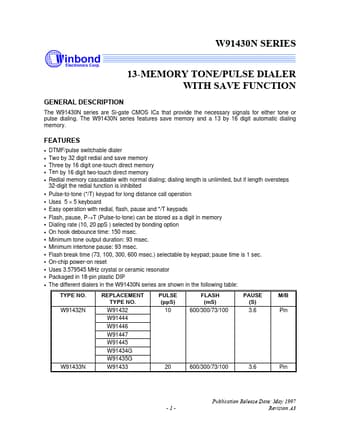

W91430N SERIES
13-MEMORY TONE/PULSE DIALER WITH SAVE FUNCTION
GENERAL DESCRIPTION
The W91430N series are Si-gate CMOS ICs that provide the necessary signals for either tone or pulse dialing. The W91430N series Features save memory and a 13 by 16 digit automatic dialing memory.
Features
- DTMF/pulse switchable dialer
- Two by 32 digit redial and save memory
- Three by 16 digit one-touch direct memory
- Ten by 16 digit two-touch direct memory
- Redial memory cascadable with normal dialing; dialing length is unlimited, but if length oversteps
32-digit the redial function is inhibited
- Pulse-to-tone (- /T) keypad for long distance call operation
- Uses 5 × 5 keyboard
- Easy operation with redial, flash, pause and
- /T keypads
- Flash, pause, P→T (Pulse-to-tone) can be stored as a digit in memory
- Dialing rate (10, 20 pp S ) selected by bonding option
- On hook debounce time: 150 msec.
- Minimum tone output duration: 93 msec.
- Minimum intertone pause: 93...
