W91590 24-MEMORY TONE/PULSE SWITCHABLE DIALER

W91590 Description

W91590 SERIES 24-MEMORY TONE/PULSE SWITCHABLE DIALER WITH HANDFREE, HOLD AND LOCK FUNCTIONS GENERAL .
The W91590 series dialers Si-gate CMOS IC tone/pulse switchable dialers with a 24-channel automatic dialing memory, including a 16-digit × 3 emergency.

W91590 Features

* DTMF/Pulse switchable dialer
* 32-digit LNB (last number buffer) memory (both tone and pulse mode)
* 32-digit mercury memory (tone/pulse mode)
* 16-digit × 3 one-touch direct repertory memory (tone/pulse mode)
* 16-digit × 20 direct or indirect repertory me

📥 Download Datasheet

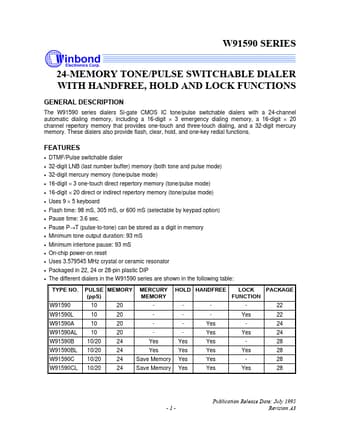

Preview of W91590 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
W91590
Manufacturer
Winbond
File Size
194.52 KB
Datasheet
W91590-Winbond.pdf
Description
24-MEMORY TONE/PULSE SWITCHABLE DIALER
