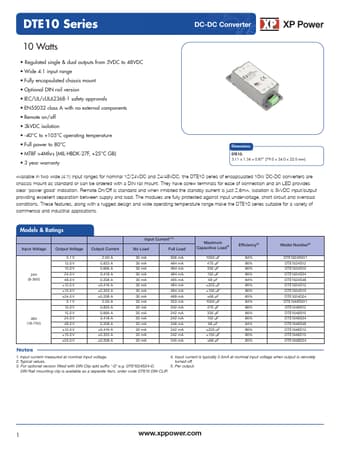

DTE10 Series
DC-DC Converter
10 Watts
xxx Series• Regulated single & dual outputs from 5VDC to 48VDC
• Wide 4:1 input range • Fully encapsulated chassis mount • Optional DIN rail version • IEC/UL/cUL62368-1 safety approvals • EN55032 class A with no external components • Remote on/off • 3kVDC isolation • -40°C to +105°C operating temperature • Full power to 80°C • MTBF >4Mhrs (MIL-HBDK-27F, +25°C GB) • 3 year warranty
Dimensions:
DTE10: 3.11 x 1.34 x 0.87” (79.0 x 34.0 x 22.0 mm)
Available in two wide (4:1) input ranges for nominal 12/24VDC and 24/48VDC, the DTE10 series of encapsulated 10W DC-DC converters are chassis mount as standard or can be ordered with a DIN rail mount. They have screw terminals for ease of connection and an LED provides clear ‘power good’ indication.
DTE1048S48 Datasheet
