FV0705T-2R2M-N - SMD Power Inductors

This page provides the datasheet information for the FV0705T-2R2M-N, a member of the FV0705 SMD Power Inductors family.

Datasheet Summary

Features

  • Lowest height(5.5mm) in this package footprint. Shielded construction. Frequency range up to 5.0MHz. Lowest DCR/uH, in this package size. Handles high transient current spikes without saturation. Ultra low buzz noise, due to composite construction. 100% lead(Pb) free.
  • Tolerance :G=±2%, J=±5%, K=±10%.

📥 Download Datasheet

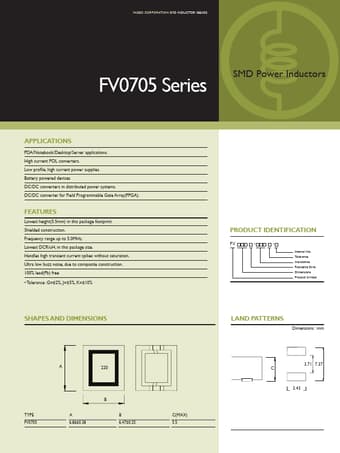

Datasheet preview – FV0705T-2R2M-N

Datasheet Details

Part number FV0705T-2R2M-N
Manufacturer YAGEO
File Size 80.80 KB
Description SMD Power Inductors
Datasheet download datasheet FV0705T-2R2M-N Datasheet
Additional preview pages of the FV0705T-2R2M-N datasheet.

📁 Similar Datasheet

Other Datasheets by YAGEO

Full PDF Text Transcription

Click to expand full text
YAGEO CORPORATION SMD INDUCTOR / BEADS FV0705 Series Applications PDA/Notebook/Desktop/Server applications. High current POL converters. Low profile, high current power supplies. Battery powered devices DC/DC converters in distributed power systems. DC/DC converter for Field Programmable Gate Array(FPGA). SMD Power Inductors Features Lowest height(5.5mm) in this package footprint. Shielded construction. Frequency range up to 5.0MHz. Lowest DCR/uH, in this package size. Handles high transient current spikes without saturation. Ultra low buzz noise, due to composite construction. 100% lead(Pb) free • Tolerance :G=±2%, J=±5%, K=±10% PRODUCT IDENTIFICATION FV Intemal No.
