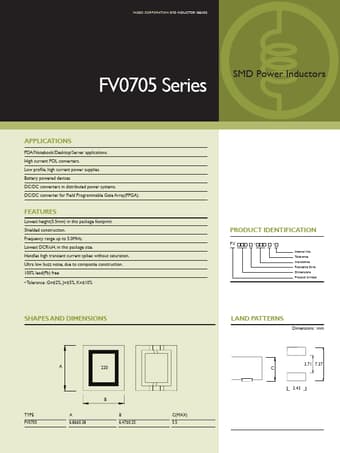

Features Lowest height(5.5mm) in this package footprint. Shielded construction. Frequency range up to 5.0MHz. Lowest DCR/u H, in this package size. Handles high transient current spikes without saturation. Ultra low buzz noise, due to posite construction. 100% lead(Pb) free - Tolerance :G=±2%, J=±5%, K=±10% PRODUCT IDENTIFICATION FV Intemal No. Tolerance Inductance Packaging Style Dimensions Product Symbol shapes and DIMENSIONS Land patterns Dimensions : mm 3.71 7.37 3.43 B TYPE FV0705 A 6.86±0.38 B 6.47±0.25 C(MAX) 5.5 ELECTRICAL CHARACTERISTICS : Lead-free & rohs pliance TYPE FV0705T-R10M-N FV0705T-R22M-N FV0705T-R33M-N FV0705T-R47M-N FV0705T-R68M-N FV0705T-R82M-N FV0705T-1R0M-N FV0705T-1R5M-N FV0705T-2R2M-N FV0705T-3R3M-N FV0705T-4R7M-N FV0705T-6R8M-N FV0705T-8R2M-N FV0705T-100M-N L(µH)±20% 0.10 0.22 0.33 0.47 0.68 0.82 1.00 1.50 2.20 3.30 4.70 6.80 8.20 10.0 DCR MAX(Ohms) 0.0017 0.0032 0.0041 0.0065 0.0094 0.0118 0.0142 0.0212 0.0340 0.0516 0.0630 0.0950 0.1060 0.1290 IDC²(A)MAX 30.0 21.0 18.0 13.5 11.0 10.0 9.00 7.50 6.50 5.00 4.50 3.50 3.00 2.50 1.Inductance tested at 0.1 Vms, 100KHz.. 2.40C temperature rise, DC current at which the inductance drops 20%(typ) from its value without current. 3.Operating temperature range -40°C to 85°C 4. Electrical specifications at 25°C 5.Inductance :...
