HC1400P03 Hybrid Coupler

HC1400P03 Description

HC1400P03 Hybrid Coupler 3 dB, 90o Rev B2 The HC1400P03 is a low profile, high performance 3dB hybrid coupler in a new easy to use, manufacturing fri.

HC1400P03 Features

* 1200-1700 MHz
* GPS
* Low Insertion Loss
* Tight Amplitude Balance
* High Isolation
* Low VSWR
* Good Repeatability
* CTE compatible with FR4, G-10, RF-35, RO4350B and polyimide
* Immersion gold, prevent surface oxidation & scratch
* RoHS Compliant
* Ta

HC1400P03 Applications

* The HC1400P03 is particularly for balanced power and low noise amplifiers, plus signal designed distribution and other applications where low insertion loss and tight amplitude and phase balance is required. It can be used in power applications up to 30 Watts. Parts have been subjected to rigorous

📥 Download Datasheet

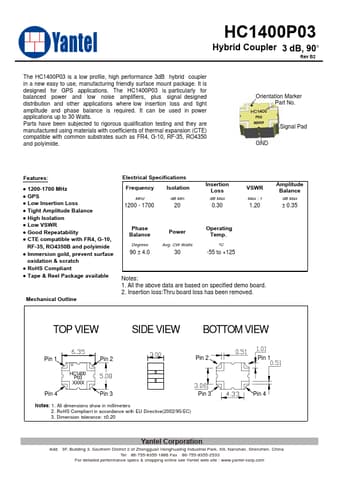

Preview of HC1400P03 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HC1400P03
Manufacturer
Yantel
File Size
705.60 KB
Datasheet
HC1400P03-Yantel.pdf
Description
Hybrid Coupler
