GBJ8M - GLASS PASSIVATED BRIDGE RECTIFIER

This page provides the datasheet information for the GBJ8M, a member of the GBJ8D GLASS PASSIVATED BRIDGE RECTIFIER family.

Datasheet Summary

Features

  • Compliance to RoHS product.
  • Ideal for printed circuit board.
  • Low forward voltage drop, high current capability.
  • Plastic Material-UL Recognition Flammability Classification 94V-0.

📥 Download Datasheet

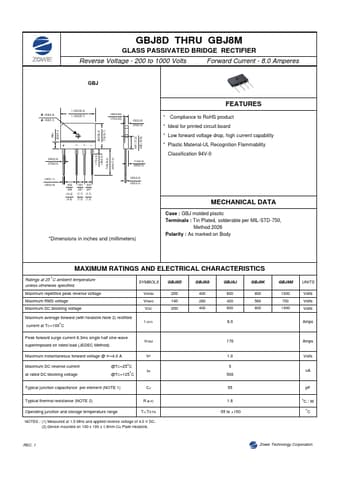

Datasheet preview – GBJ8M

Datasheet Details

Part number GBJ8M
Manufacturer ZOWIE
File Size 41.70 KB
Description GLASS PASSIVATED BRIDGE RECTIFIER
Datasheet download datasheet GBJ8M Datasheet
Additional preview pages of the GBJ8M datasheet.

📁 Similar Datasheet

  • GBJ8M - Glass Passivated Single-Phase Bridge Rectifiers (Shunye)
  • GBJ8M - Glass Passivated Single-Phase Bridge Rectifiers (GOOD-ARK)
  • GBJ8M - 8.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER (WON-TOP)
  • GBJ8M - Bridge Rectifier (Formosa MS)
  • GBJ8005 - 8.0A GLASS PASSIVATED BRIDGE RECTIFIER (Diodes Incorporated)
  • GBJ8005 - 8 Amp Glass Passivated Bridge Rectifier (Micro Commercial Components)
  • GBJ8005 - 8A Miniature Glass Passivated Single-Phase Bridge Rectifiers (CITC)
  • GBJ8005 - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (STS)
  • GBJ8005 - GLASS PASSIVATED BRIDGE RECTIFIER (KD)
  • GBJ8005 - Glass Passivated Bridge Rectifiers (HY ELECTRONIC)
Other Datasheets by ZOWIE
  • GBJ8D - GLASS PASSIVATED BRIDGE RECTIFIER
  • GBJ8G - GLASS PASSIVATED BRIDGE RECTIFIER
  • GBJ8J - GLASS PASSIVATED BRIDGE RECTIFIER
  • GBJ8K - GLASS PASSIVATED BRIDGE RECTIFIER
  • GBJ10D - GLASS PASSIVATED BRIDGE RECTIFIER
  • GBJ10G - GLASS PASSIVATED BRIDGE RECTIFIER
  • GBJ10J - GLASS PASSIVATED BRIDGE RECTIFIER
  • GBJ10K - GLASS PASSIVATED BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text
GBJ8D THRU GBJ8M GLASS PASSIVATED BRIDGE RECTIFIER Reverse Voltage - 200 to 1000 Volts Forward Current - 8.0 Amperes GBJ .134(3.4) .122(3.1) 1.193(30.3) 1.169(29.7) Max. .200(5.1) + ~ ~- .094(2.4) .078(2.0) .043(1.1) .035(0.9) .402 .386 (10.2) (9.8) .303 .303 .287 .287 (7.7) (7.7) (7.3) (7.3) .177(4.5) .138(3.5) .708(18.0) .669(17.0) .800(20.3) .776(19.7) .189(4.80) .173(4.40) .150(3.8) .134(3.4) .441 (11.2) .425 (10.8) .114(2.9) .098(2.5) .035(0.9) .020(0.
