ZXLD1322 Datasheet - Zetex Semiconductors

ZXLD1322, Buck/boost mode DC-DC converter

The ZXLD1322 is an inductive DC-DC converter, with an internal switch, designed for driving single or multiple LEDs in series up to a total of 700mA output current. Applications cover input voltages ranging from 2.5V to 15V. Depending upon supply voltage and external components, this can provide up .

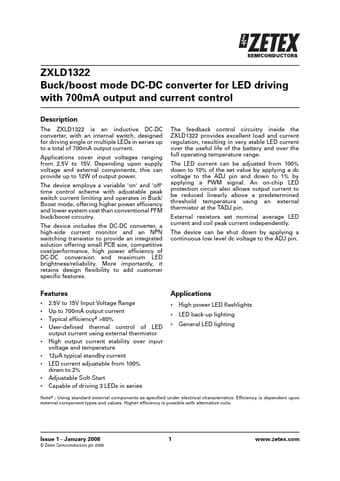

datasheet Preview Page 1 from Datasheet4u.com

ZXLD1322_ZetexSemiconductors.pdf

ZXLD1322 Datasheet Preview — Preview of ZXLD1322 PDF

Datasheet Details

Part number:

ZXLD1322

Manufacturer:

Zetex Semiconductors

File Size:

427.17 KB

Description:

Buck/boost mode DC-DC converter

ZXLD1322 Features

* The feedback control circuitry inside the ZXLD1322 provides excellent load and current regulation, resulting in very stable LED current over the useful life of the battery and over the full operating temperature range. The LED current can be adjusted from 100% down to 10% of the set value by applyi
