Zetex Semiconductors

ZXMP4A16K Datasheet Preview

ZXMP4A16K Datasheet

P-channel enhancement mode MOSFET

No Preview Available !

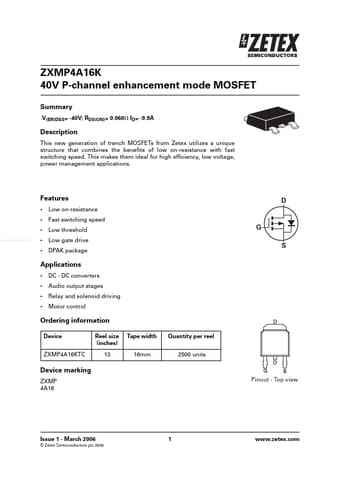

ZXMP4A16K
40V P-channel enhancement mode MOSFET
Summary
V(BR)DSS= -40V; RDS(ON)= 0.060ID= -9.9A
Description
This new generation of trench MOSFETs from Zetex utilizes a unique
structure that combines the benefits of low on-resistance with fast
switching speed. This makes them ideal for high efficiency, low voltage,
power management applications.
www.DataSheet4U.com
Features
• Low on-resistance
• Fast switching speed
• Low threshold
• Low gate drive
• DPAK package
Applications
• DC - DC converters
• Audio output stages
• Relay and solenoid driving
• Motor control
Ordering information
Device
ZXMP4A16KTC
Reel size Tape width
(inches)
13 16mm
Quantity per reel
2500 units
Device marking
ZXMP
4A16
D
G
S
Pinout - Top view
Issue 1 - March 2006
© Zetex Semiconductors plc 2006
1
www.zetex.com




Zetex Semiconductors

ZXMP4A16K Datasheet Preview

ZXMP4A16K Datasheet

P-channel enhancement mode MOSFET

No Preview Available !

ZXMP4A16K
Absolute maximum rating
Parameter
Drain-source voltage
Gate-source voltage
Continuous drain current
VGS= -10V; TA=25°C (b)
VGS= -10V; TA=70°C (b)
VGS= -10V; TA=25°C (a)
Pulsed drain current (c)
Continuous source current (body diode) (b)
Pulsed source current (body diode) (c)
Power dissipation at TA=25°C (a)
Linear derating factor
Power dissipation at TA=25°C (b)
Linear derating factor
Power dissipation at TA=25°C (d)
Linear derating factor
Operating and storage temperature range
Symbol
VDSS
VGS
Limit
-40
±20
Unit
V
V
ID
IDM
IS
ISM
PD
PD
PD
Tj:Tstg
-9.9
-8.0
-6.6
-35
-10.1
-35
4.2
33.6
9.5
76
2.15
17.2
-55 to +150
A
A
A
A
A
A
W
mW/°C
W
mW/°C
W
mW/°C
°C
Thermal resistance
Parameter
Junction to ambient (a)
Junction to ambient (b)
Junction to ambient (d)
Symbol
RJA
RJA
RJA
Value
30
13.2
58
Unit
°C/W
°C/W
°C/W
NOTES:
(a) For a device surface mounted on 50mm x 50mm x 1.6mm FR4 PCB with high coverage of single sided 2oz copper, in
still air conditions.
(b) For a device surface mounted on FR4 PCB measured at t Յ10 sec.
(c) Repetitive rating 50mm x 50mm x 1.6mm FR4 PCB, D=0.02 pulse width=300s - pulse width limited by maximum
junction temperature.
(d) For a device surface mounted on 25mm x 25mm x 1.6mm FR4 PCB with high coverage of single sided 1oz copper, in
still air conditions.
Issue 1 - March 2006
© Zetex Semiconductors plc 2006
2
www.zetex.com
