ZXMP6A13G - 60V P-CHANNEL MOSFET

Description

This new generation of Trench MOSFETs from Zetex utilizes a unique structure that combines the benefits of low on-resistance with fast switching speed.

This makes them ideal for high efficiency, low voltage, power management applications.

Features

  • Low on-resistance.
  • Fast switching speed.
  • Low threshold.
  • Low gate drive.
  • SOT223 package.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ZXMP6A13G 60V P-CHANNEL MOSFET Diodes
ZXMP6A13F 60V P-Channel MOSFET DIODES
ZXMP6A13FQ P-Channel MOSFET Diodes
ZXMP6A16DN8Q P-Channel MOSFET Diodes
ZXMP6A17DN8 Dual P-Channel MOSFET DIODES

Other Datasheets by Zetex (Diodes Incorporated)

Part Number Description
ZXMP6A13F 60V P-CHANNEL MOSFET
ZXMP6A16DN8 Dual P-Channel MOSFET
ZXMP6A16K P-Channel MOSFET
ZXMP6A17DN8 Dual P-Channel MOSFET
ZXMP6A17E6 P-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

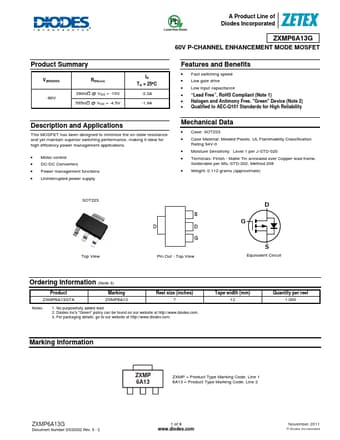

www.DataSheet4U.com ZXMP6A13G 60V P-CHANNEL ENHANCEMENT MODE MOSFET SUMMARY V(BR)DSS = -60V: RDS(on) = 0.390 : ID = -2.3A DESCRIPTION This new generation of Trench MOSFETs from Zetex utilizes a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage, power management applications.
