EGF10A
EGF10A is SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER manufactured by Zowie.

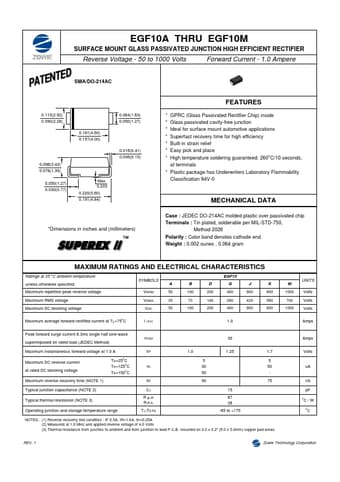

EGF10A THRU EGF10M
SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
Reverse Voltage
- 50 to 1000 Volts
Forward Current
- 1.0 Ampere
PPAATTEENNTTEEDD SMA/DO-214AC
0.115(2.92) 0.090(2.28)
0.096(2.43) 0.078(1.99)
0.050(1.27) 0.030(0.77)
0.181(4.60) 0.157(4.00)
Max. 0.203 0.220(5.60) 0.191(4.84)
0.064(1.63) 0.050(1.27)
0.016(0.41) 0.006(0.15)
- Dimensions in inches and (millimeters)
Features
- GPRC (Glass Passivated Rectifier Chip) inside
- Glass passivated cavity-free junction
- Ideal for surface mount automotive applications
- Superfast recovery time for high efficiency
- Built-in strain relief
- Easy pick and place
- High temperature soldering guaranteed: 260o C/10 seconds, at terminals
- Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
MECHANICAL DATA
Case : JEDEC DO-214AC molded plastic over passivated chip Terminals : Tin plated, solderable per MIL-STD-750,
Method 2026 Polarity : Color band denotes cathode end Weight : 0.002...
