EGF20DH - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER

This page provides the datasheet information for the EGF20DH, a member of the EGF20AH SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER family.

Features

  • Halogen-free type.
  • GPRC (Glass Passivated Rectifier Chip) inside.
  • Glass passivated cavity-free junction.
  • Ideal for surface mount automotive.

📥 Download Datasheet

Datasheet preview – EGF20DH

Datasheet Details

Part number EGF20DH
Manufacturer Zowie
File Size 51.59 KB
Description SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
Datasheet download datasheet EGF20DH Datasheet
Additional preview pages of the EGF20DH datasheet.

📁 Similar Datasheet

  • EGF2A - 2.0A Sintered Glass Passivated Super Fast Rectifier (TAITRON)
  • EGF2B - 2.0A Sintered Glass Passivated Super Fast Rectifier (TAITRON)
  • EGF2D - 2.0A Sintered Glass Passivated Super Fast Rectifier (TAITRON)
  • EGF2G - 2.0A Sintered Glass Passivated Super Fast Rectifier (TAITRON)
  • EGF2J - 2.0A Sintered Glass Passivated Super Fast Rectifier (TAITRON)
  • EGF2K - 2.0A Sintered Glass Passivated Super Fast Rectifier (TAITRON)
  • EGF1A - 1.0 Ampere High Efficiency Glass Passivated Rectifier (Fairchild)
  • EGF1A - ULTRAFAST SURFACE MOUNT RECTIFIER (General)
  • EGF1A - (EGF1x) Surface Mount Glass Passivated Ultrafast Rectifier (Vishay Siliconix)
  • EGF1A - Surface Mount Glass Passivated Junction High Efficient Rectifiers (Taiwan Semiconductor)
Other Datasheets by Zowie
  • EGF20D - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
  • EGF20A - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
  • EGF20AH - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
  • EGF20B - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
  • EGF20BH - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
  • EGF20G - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
  • EGF20GH - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
  • EGF20J - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER

Full PDF Text Transcription

Click to expand full text

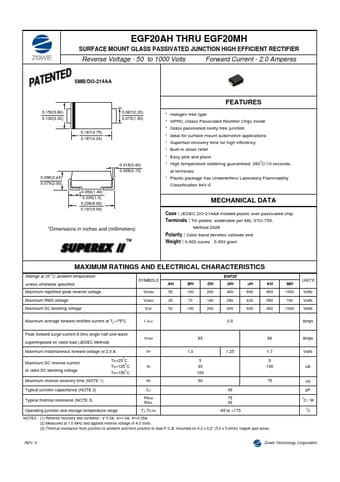

EGF20AH THRU EGF20MH SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Amperes PPAATTEENNTTEEDD SMB/DO-214AA 0.150(3.80) 0.130(3.30) 0.187(4.75) 0.167(4.24) 0.087(2.20) 0.075(1.90) 0.096(2.43) 0.079(2.00) 0.016(0.40) 0.006(0.15) 0.050(1.40) 0.039(1.0) 0.236(6.00) 0.197(5.
