EGF30AH - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER

Features

  • Halogen-free type.
  • GPRC (Glass Passivated Rectifier Chip) inside.
  • Glass passivated cavity-free junction.
  • Ideal for surface mount automotive.

📥 Download Datasheet

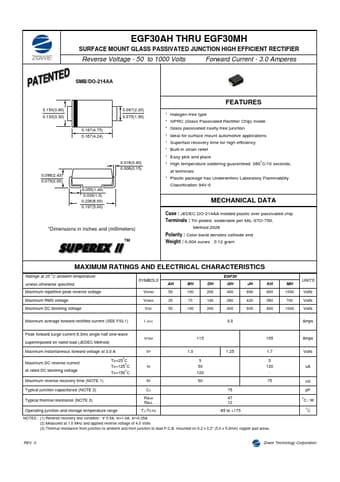

Datasheet preview – EGF30AH

Datasheet Details

Part number EGF30AH
Manufacturer Zowie
File Size 54.38 KB
Description SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
Datasheet download datasheet EGF30AH Datasheet
Additional preview pages of the EGF30AH datasheet.

📁 Similar Datasheet

  • EGF30A - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER (Zowie Technology)
  • EGF30B - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER (Zowie Technology)
  • EGF30D - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER (Zowie Technology)
  • EGF30F - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER (Zowie Technology)
  • EGF30G - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER (Zowie Technology)
  • EGF30J - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER (Zowie Technology)
  • EGF30K - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER (Zowie Technology)
  • EGF30M - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER (Zowie Technology)
  • EGF3AB - 3.0A Sintered Glass Passivated Super Fast Rectifier (TAITRON)
  • EGF3BB - 3.0A Sintered Glass Passivated Super Fast Rectifier (TAITRON)
Other Datasheets by Zowie
  • EGF30BH - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
  • EGF30DH - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
  • EGF30GH - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
  • EGF30JH - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
  • EGF30KH - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
  • EGF30MH - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
  • EGF10A - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
  • EGF10B - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER

Full PDF Text Transcription

Click to expand full text
EGF30AH THRU EGF30MH SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Amperes PATENTED SMB/DO-214AA 0.150(3.80) 0.130(3.30) 0.187(4.75) 0.167(4.24) 0.087(2.20) 0.075(1.90) 0.096(2.43) 0.079(2.00) 0.016(0.40) 0.006(0.15) 0.055(1.40) 0.039(1.0) 0.236(6.00) 0.197(5.
