54HC174, Hex D-Type Flip-Flops

The SNx4HC174 contains six positive-edge-triggered D-type flip-flops with shared clock (CLK) and clear (CLR) inputs. PART NUMBER SN74HC174D SN74HC174DB SN74HC174N SN74HC174NS SN74HC174PW SN54HC174J SNJ54HC174FK SNJ54HC174W Device Information PACKAGE(1) BODY SIZE (NOM) SOIC (16) 9.90 mm × 3.90.

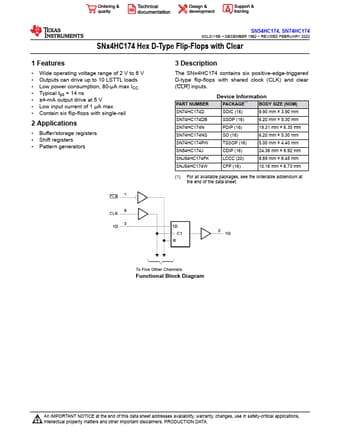

Datasheet Preview Page 1

54HC174-etcTI.pdf

54HC174 Datasheet Preview — Preview of 54HC174 PDF

54HC174 Datasheet Preview Page 2

54HC174 Datasheet Preview Page 3

Datasheet Details

Part number:

54HC174

Manufacturer:

Texas Instruments ↗

File Size:

1.95 MB

Description:

Hex D-Type Flip-Flops

54HC174 Features

* Wide operating voltage range of 2 V to 6 V

* Outputs can drive up to 10 LSTTL loads

* Low power consumption, 80-μA max ICC

* Typical tpd = 14 ns

* ±4-mA output drive at 5 V

* Low input current of 1 μA max

* Contain six flip-flops with single-
