DAC7562T - Low-Power Voltage-Output DACs

Datasheet Summary

Description

The DAC856xT, DAC816xT, and DAC756xT devices are low-power, voltage-output, dual-channel, 16-, 14-, and 12-bit digital-to-analog converters (DACs), respectively.

These devices include a 2.5-V, 4-ppm/°C internal reference, giving a full-scale output voltage range of 2.5 V or 5 V.

Features

  • 1 Relative Accuracy: 4 LSB INL at 16 Bits.
  • Low Glitch Impulse: 0.1 nV-s.
  • Bidirectional Reference Pin: Input or 2.5-V Output.
  • 4-ppm/°C Temperature Drift (Typ).
  • Power-On Reset to Zero Scale or Mid-Scale.
  • Low-Power: 4 mW at 5-V AVDD.
  • Wide Power-Supply Range: 2.7 V to 5.5 V.
  • 50-MHz SPI With Schmitt-Triggered Inputs.
  • LDAC and CLR Functions.
  • Output Buffer With Rail-to-Rail Operation.
  • Pin-to-Pin Compatibl.

📥 Download Datasheet

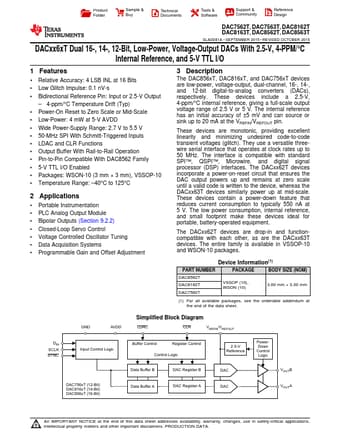

Datasheet preview – DAC7562T

Datasheet Details

Part number DAC7562T
Manufacturer Texas Instruments
File Size 2.48 MB
Description Low-Power Voltage-Output DACs
Datasheet download datasheet DAC7562T Datasheet
Additional preview pages of the DAC7562T datasheet.

📁 Similar Datasheet

  • DAC7512 - DIGITAL-TO-ANALOG CONVERTER (Burr-Brown)
  • DAC7513 - DIGITAL-TO-ANALOG CONVERTER (Burr-Brown)
  • DAC7528 - CMOS Dual 8-Bit Buffered Multiplying DIGITAL-TO-ANALOG CONVERTER (Burr-Brown Corporation)
  • DAC7541A - Low Cost 12-Bit CMOS Four-Quadrant Multiplying DIGITAL-TO-ANALOG CONVERTER (Burr-Brown Corporation)
  • DAC7545 - CMOS 12-Bit Multiplying DIGITAL-TO-ANALOG CONVERTER (Burr-Brown Corporation)
  • DAC7551 - DIGITAL-TO-ANALOG CONVERTER (Burr-Brown)
  • DAC701 - Monolithic 16-Bit DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown Corporation)
  • DAC702 - Monolithic 16-Bit DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown Corporation)
  • DAC703 - Monolithic 16-Bit DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown)
  • DAC707 - Microprocessor-Compatible 16-BIT DIGITAL-TO-ANALOG CONVERTERS (Burr-Brown Corporation)
Other Datasheets by Texas Instruments
  • DAC7562 - Low-Power Buffered Voltage-Output DACs
  • DAC7562-Q1 - Low-Power Buffered Voltage-Output DACs
  • DAC7563 - Low-Power Buffered Voltage-Output DACs
  • DAC7563-Q1 - Low-Power Buffered Voltage-Output DACs
  • DAC7563T - Low-Power Voltage-Output DACs
  • DAC7564 - Quad 12-Bit D/A Converter
  • DAC7565 - Quad 12-Bit D/A Converter
  • DAC7568 - D/A Converter

Full PDF Text Transcription

Click to expand full text
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design DAC7562T, DAC7563T, DAC8162T DAC8163T, DAC8562T, DAC8563T SLASE61A – SEPTEMBER 2015 – REVISED OCTOBER 2015 DACxx6xT Dual 16-, 14-, 12-Bit, Low-Power, Voltage-Output DACs With 2.5-V, 4-PPM/°C Internal Reference, and 5-V TTL I/O 1 Features •1 Relative Accuracy: 4 LSB INL at 16 Bits • Low Glitch Impulse: 0.1 nV-s • Bidirectional Reference Pin: Input or 2.5-V Output – 4-ppm/°C Temperature Drift (Typ) • Power-On Reset to Zero Scale or Mid-Scale • Low-Power: 4 mW at 5-V AVDD • Wide Power-Supply Range: 2.7 V to 5.
