DCP020505, DCP020503 Unregulated DC/DC Converter

DCP020505 Description

www.ti.com DCP020503, DCP020505, DCP020507, DCP020509, DCP020515D, DCP021205, DCP021212, DCP020503, DCP02050D5,CDPC0P210221025D07, ,DDCCPP00221055105.
The DCP02 series is a family of 2-W, isolated, unregulated DC/DC converter modules.

DCP020505 Features

* 1-kV Isolation (operational): 1-second test
* Continuous voltage applied across isolation barrier: 60 VDC / 42.5 VAC
* UL1950 recognized component
* EN55022 class B EMC performance
* 7-Pin PDIP and 12-pin SOP packages
* Input voltage: 5 V, 12 V, 15 V

DCP020505 Applications

* Signal path isolation
* Ground loop elimination
* Data acquisition
* Industrial control and instrumentation

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DCP020505, DCP020503. Please refer to the document for exact specifications by model.

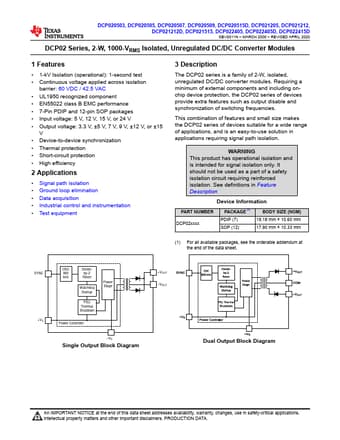

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DCP020505, DCP020503
Manufacturer
Texas Instruments ↗
File Size
2.17 MB
Datasheet
DCP020503-etcTI.pdf
Description
Unregulated DC/DC Converter
Note
This datasheet PDF includes multiple part numbers: DCP020505, DCP020503.
Please refer to the document for exact specifications by model.
