ISO7221C-Q1 - DUAL DIGITAL ISOLATORS

Product Overview

Texas Instruments

📥 Download Datasheet

ISO7221C-Q1 DUAL DIGITAL ISOLATORS by Texas Instruments - Datasheet Preview — Datasheet preview – ISO7221C-Q1

Datasheet Details

Part number	ISO7221C-Q1
Manufacturer	Texas Instruments
File Size	1.46 MB
Description	DUAL DIGITAL ISOLATORS
Datasheet	ISO7221C-Q1 Datasheet
Note	This datasheet PDF includes multiple part numbers: ISO7221C-Q1, ISO7220A-Q1. Please refer to the document for exact specifications by model.

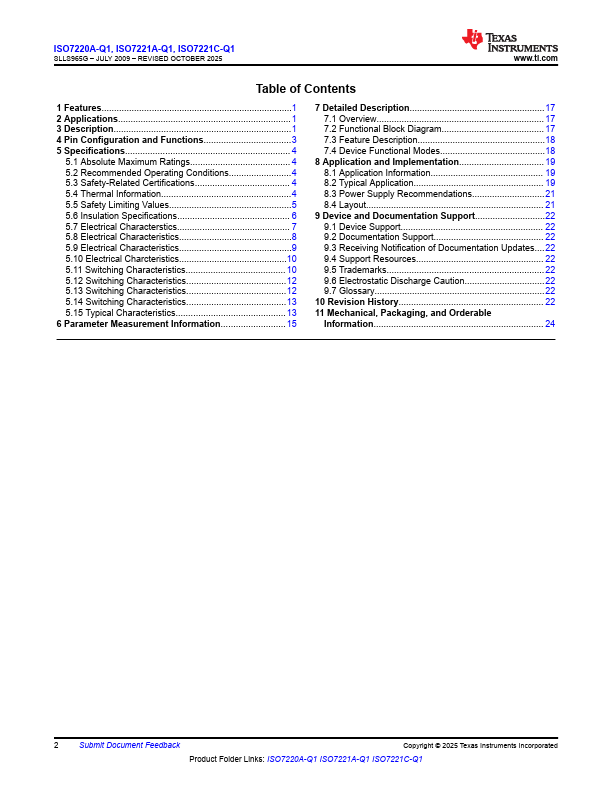

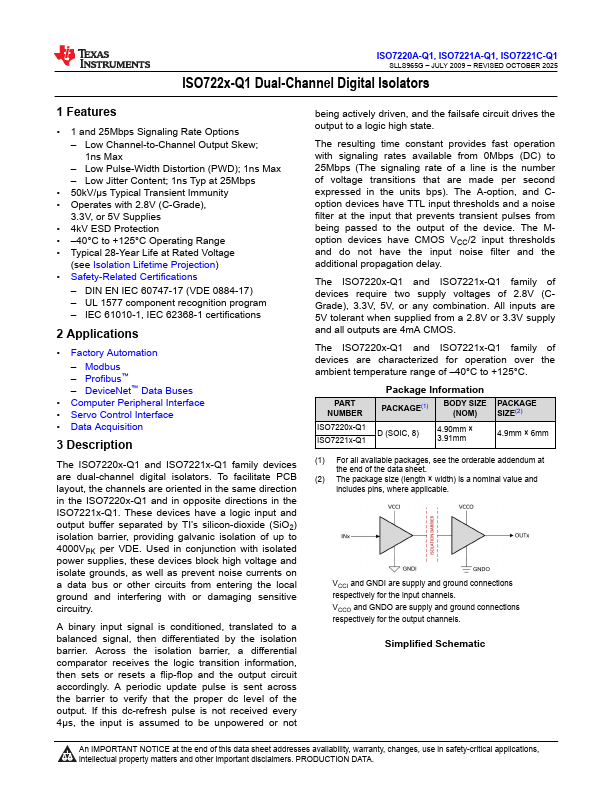

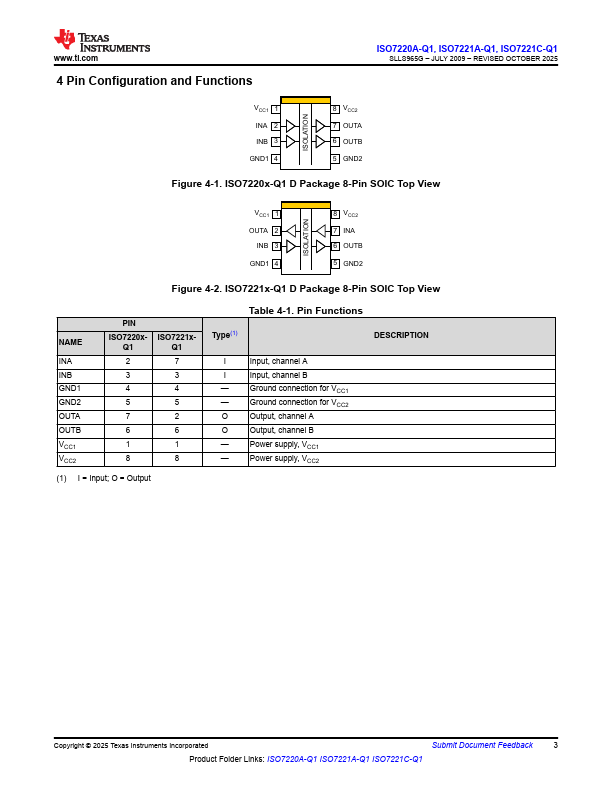

Additional preview pages of the ISO7221C-Q1 datasheet.

Product details

Description

The ISO7220x-Q1 and ISO7221x-Q1 family devices are dual-channel digital isolators.

Features

1 and 25Mbps Signaling Rate Options.
Low Channel-to-Channel Output Skew; 1ns Max.
Low Pulse-Width Distortion (PWD); 1ns Max.
Low Jitter Content; 1ns Typ at 25Mbps.
50kV/μs Typical Transient Immunity.
Operates with 2.8V (C-Grade), 3.3V, or 5V Supplies.
4kV ESD Protection.
40°C to +125°C Operating Range.
Typical 28-Year Life at Rated Voltage (see Isolation Lifetime Projection).
Safety-Related Certif.
