General Description
The LM358B and LM2904B devices are the next-generation versions of the industry-standard operational amplifiers (op amps) LM358 and LM2904, which include two high-voltage (36V) op amps.
Key Features
Wide supply range of 3V to 36V (B, BA versions).
Quiescent current: 300µA/ch (B, BA versions).
Unity-gain bandwidth of 1.2MHz (B, BA versions).
Common-mode input voltage range includes
ground, enabling direct sensing near ground.
2mV input offset voltage maximum at 25°C (BA
version).
3mV input offset voltage maximum at 25°C (A, B
versions).
Full PDF Text Transcription for LM358BA (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
LM358BA. For precise diagrams, and layout, please refer to the original PDF.

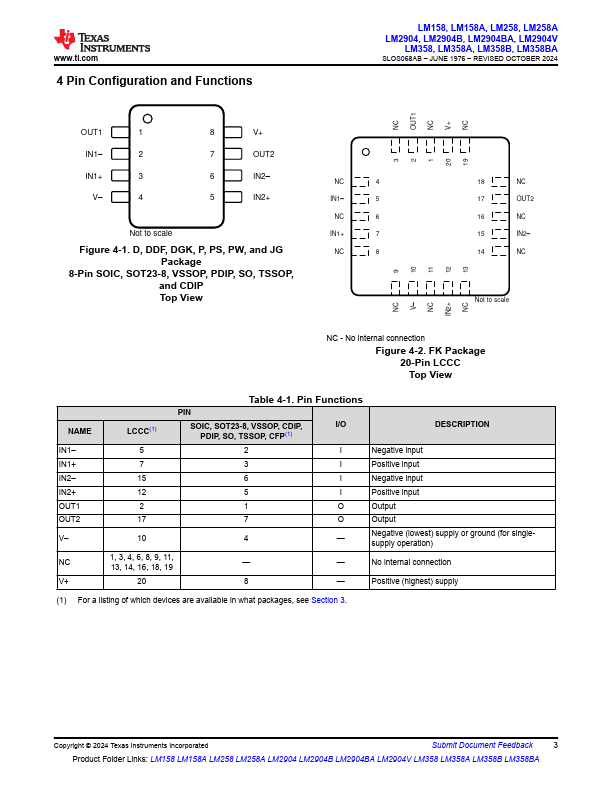

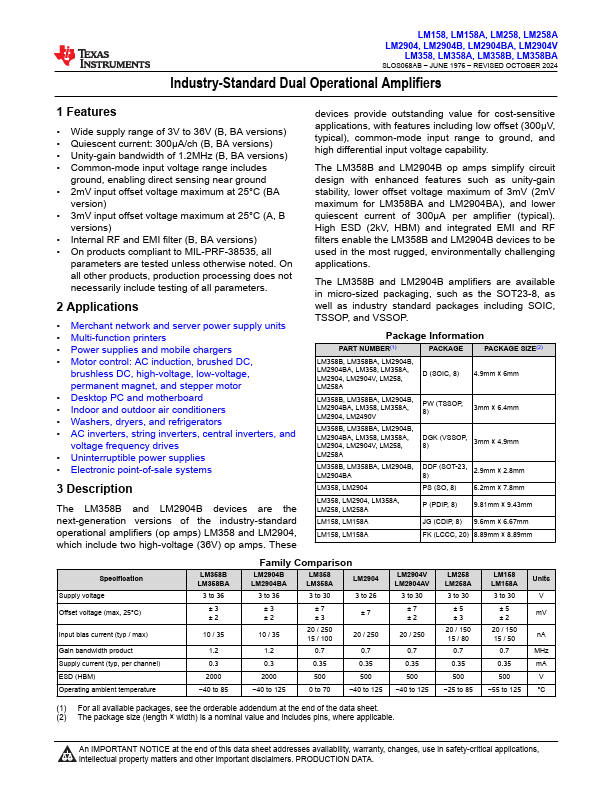

68AB – JUNE 1976 – REVISED OCTOBER 2024 Industry-Standard Dual Operational Amplifiers 1 Features • Wide supply range of 3V to 36V (B, BA versions) • Quiescent current: 300µA/ch (B, BA versions) • Unity-gain bandwidth of 1.2MHz (B, BA versions) • Common-mode input voltage range includes ground, enabling direct sensing near ground • 2mV input offset voltage maximum at 25°C (BA version) • 3mV input offset voltage maximum at 25°C (A, B versions) • Internal RF and EMI filter (B, BA versions) • On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, production processing d
