LP38869 Low-Dropout Linear Regulator

LP38869 Description

LP38869 www.ti.com SNVS877B * AUGUST 2012 * REVISED APRIL 2013 LP38869 1A FlexCap, Low-Dropout Linear Regulator with 0.75% Accuracy.
The LP38869 low-dropout linear regulator operates with an input voltage supply from +2.

LP38869 Features

* 1
* 2 Operating Input Supply Range: +2.7V to + 5.5V
* Maximum Continuous Output Current: 1A
* Preset Output Voltage of 2.5V, or Adjustable Output Voltage From 0.8V to 5.0V
* Pre-Set Output Initial VOUT Tolerance ±0.5%
* Adjustable VREF Tolerance of ±0.75%

LP38869 Applications

* DSA, FPGA and MCU Power Supply
* SMPS Post-Regulator
* Applications Requiring Sequencing

📥 Download Datasheet

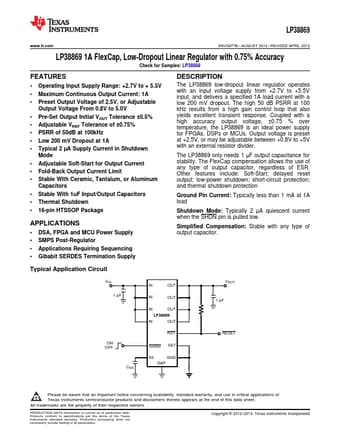

Preview of LP38869 PDF
datasheet Preview Page 2 datasheet Preview Page 3
