LT1009M, 2.5-V INTEGRATED REFERENCE CIRCUIT

ORDERING INFORMATION The LT1009 reference circuit is a precision-trimmed 2.5-V shunt regulator featuring low dynamic impedance and a wide operating current range. The reference tolerance is achieved by on-chip trimming, which minimizes the initial voltage tolerance and the temperature coefficient, α.

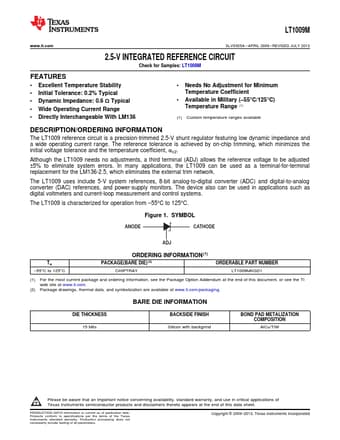

datasheet Preview Page 1 from Datasheet4u.com

LT1009M-etcTI.pdf

LT1009M Datasheet Preview — Preview of LT1009M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number:

LT1009M

Manufacturer:

Texas Instruments ↗

File Size:

175.56 KB

Description:

2.5-V INTEGRATED REFERENCE CIRCUIT

LT1009M Features

* 1

* Excellent Temperature Stability

* Initial Tolerance: 0.2% Typical

* Dynamic Impedance: 0.6 Ω Typical

* Wide Operating Current Range

* Directly Interchangeable With LM136

* Needs No Adjustment for Minimum Temperature Coefficient

* Available
