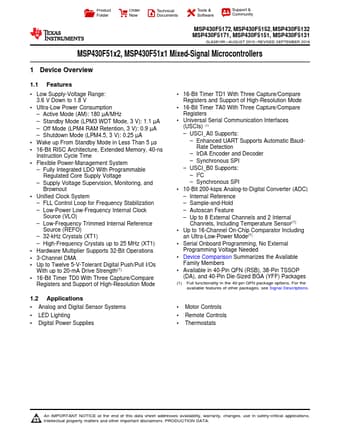

MSP430F5172, MSP430F5152, MSP430F5132
MSP430F5171, MSP430F5151, MSP430F5131
SLAS619R – AUGUST 2010 – REVISED SEPTEMBER 2018
MSP430F51x2, MSP430F51x1 Mixed-Signal Microcontrollers
1 Device Overview
1.1 Features
1
• Low Supply-Voltage Range:
3.6 V Down to 1.8 V
• Ultra-Low Power Consumption
– Active Mode (AM): 180 µA/MHz
– Standby Mode (LPM3 WDT Mode, 3 V): 1.1 µA
– Off Mode (LPM4 RAM Retention, 3 V): 0.9 µA
– Shutdown Mode (LPM4.5, 3 V): 0.25 µA
• Wake up From Standby Mode in Less Than 5 µs
• 16-Bit RISC Architecture, Extended Memory, 40-ns
Instruction Cycle Time
• Flexible Power-Management System
– Fully Integrated LDO With Programmable
Regulated Core Supply Voltage
– Supply Voltage Supervision, Monitoring, and
Brownout
• Unified Clock System
– FLL Control Loop for Frequency Stabilization
– Low-Power Low-Frequency Internal Clock
Source (VLO)
– Low-Frequency Trimmed Internal Reference
Source (REFO)
– 32-kHz Crystals (XT1)
– High-Frequency Crystals up to 25 MHz (XT1)
• Hardware Multiplier Supports 32-Bit Operations
• 3-Channel DMA
• Up to Twelve 5-V-Tolerant Digital Push/Pull I/Os
With up to 20-mA Drive Strength(1)
• 16-Bit Timer TD0 With Three Capture/Compare
Registers and Support of High-Resolution Mode
1.2 Applications
• Analog and Digital Sensor Systems
• LED Lighting
• Digital Power Supplies
• 16-Bit Timer TD1 With Three Capture/Compare
Registers and Support of High-Resolution Mode
• 16-Bit Timer TA0 With Three Capture/Compare
Registers
• Universal Serial Communication Interfaces
(USCIs) (1)
– USCI_A0 Supports:
– Enhanced UART Supports Automatic Baud-
Rate Detection
– IrDA Encoder and Decoder
– Synchronous SPI
– USCI_B0 Supports:
– I2C
– Synchronous SPI
• 10-Bit 200-ksps Analog-to-Digital Converter (ADC)
– Internal Reference
– Sample-and-Hold
– Autoscan Feature
– Up to 8 External Channels and 2 Internal
Channels, Including Temperature Sensor(1)
• Up to 16-Channel On-Chip Comparator Including
an Ultra-Low-Power Mode(1)
• Serial Onboard Programming, No External
Programming Voltage Needed
Device Comparison Summarizes the Available
Family Members
• Available in 40-Pin QFN (RSB), 38-Pin TSSOP
(DA), and 40-Pin Die-Sized BGA (YFF) Packages
(1) Full functionality in the 40-pin QFN package options. For the
available features of other packages, see Signal Descriptions.
• Motor Controls
• Remote Controls
• Thermostats
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.




etcTI

MSP430F5132 Datasheet Preview

MSP430F5132 Datasheet

Mixed-Signal Microcontrollers

No Preview Available !

MSP430F5172, MSP430F5152, MSP430F5132
MSP430F5171, MSP430F5151, MSP430F5131
SLAS619R – AUGUST 2010 – REVISED SEPTEMBER 2018
www.ti.com
1.3 Description
The TI MSP family of ultra-low-power microcontrollers consists of several devices featuring different sets
of peripherals targeted for various applications. The architecture, combined with five low-power modes, is
optimized to achieve extended battery life in portable measurement applications. The device features a
powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code
efficiency. The digitally controlled oscillator (DCO) allows the devices to wake up from low-power modes to
active mode in less than 5 µs.
The MSP430F51x2 microcontrollers include two 16-bit high-resolution timers, two USCIs (USCI_A0 and
USCI_B0), a 32-bit hardware multiplier, a high-performance 10-bit ADC, an on-chip comparator, a 3-
channel DMA, 5-V tolerant I/Os, and up to 29 I/O pins.
The MSP430F51x1 microcontrollers include two 16-bit high-resolution timers, two USCIs (USCI_A0 and
USCI_B0), a 32-bit hardware multiplier, an on-chip comparator, a 3-channel DMA, 5-V tolerant I/Os, and
up to 29 I/O pins.
Typical applications for these devices include analog and digital sensor systems, LED lighting, digital
power supplies, motor controls, remote controls, thermostats, digital timers, and hand-held meters.
For complete module descriptions, see the MSP430F5xx and MSP430F6xx Family User's Guide.
PART NUMBER
Device Information(1)
PACKAGE
BODY SIZE(2)
MSP430F5172IYFF
DSBGA (40)
See Section 8
MSP430F5172IRSB
WQFN (40)
5 mm × 5 mm
MSP430F5172IDA
TSSOP (38)
12.5 mm × 6.2 mm
(1) For the most current part, package, and ordering information, see the Package Option Addendum in
Section 8, or see the TI website at www.ti.com.
(2) The dimensions shown here are approximations. For the package dimensions with tolerances, see the
Mechanical Data in Section 8.
2 Device Overview
Copyright © 2010–2018, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Links: MSP430F5172 MSP430F5152 MSP430F5132 MSP430F5171 MSP430F5151 MSP430F5131
