MSP430F5171 - Mixed-Signal Microcontrollers

This page provides the datasheet information for the MSP430F5171, a member of the MSP430F5172 Mixed-Signal Microcontrollers family.

Datasheet Summary

Description

.

Motor Controls Remote Controls

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers.

PRODUCTION DATA.

Features

  • 1.
  • Low Supply-Voltage Range: 3.6 V Down to 1.8 V.
  • Ultra-Low Power Consumption.
  • Active Mode (AM): 180 µA/MHz.
  • Standby Mode (LPM3 WDT Mode, 3 V): 1.1 µA.
  • Off Mode (LPM4 RAM Retention, 3 V): 0.9 µA.
  • Shutdown Mode (LPM4.5, 3 V): 0.25 µA.
  • Wake up From Standby Mode in Less Than 5 µs.
  • 16-Bit RISC Architecture, Extended Memory, 40-ns Instruction Cycle Time.
  • Flexible Power-Management System.
  • Fully Integrated LDO Wit.

📥 Download Datasheet

Datasheet preview – MSP430F5171

Datasheet Details

Part number MSP430F5171
Manufacturer Texas Instruments
File Size 2.06 MB
Description Mixed-Signal Microcontrollers
Datasheet download datasheet MSP430F5171 Datasheet
Additional preview pages of the MSP430F5171 datasheet.

📁 Similar Datasheet

  • MSP4000 - MSP for VoIP Gateways with Integrated Secure Router (PMC-Sierra)
  • MSP4403W - P-Channel Enhancement Mode Power MOSFET (MORESEMI)
  • MSP4408G - (MSP44x8G) Multistandard Sound Processor (Micronas)
  • MSP4410G - Multistandard Sound Processor (Micronas Semiconductor)
  • MSP4418G - (MSP44x8G) Multistandard Sound Processor (Micronas)
  • MSP4420G - Multistandard Sound Processor (Micronas Semiconductor)
  • MSP4428G - (MSP44x8G) Multistandard Sound Processor (Micronas)
  • MSP4435W - P-Channel Enhancement Mode Power MOSFET (MORESEMI)
  • MSP4440G - Multistandard Sound Processor (Micronas Semiconductor)
  • MSP4448G - (MSP44x8G) Multistandard Sound Processor (Micronas)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text

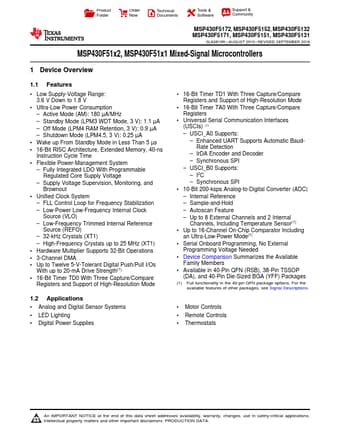

Product Folder Order Now Technical Documents Tools & Software Support & Community MSP430F5172, MSP430F5152, MSP430F5132 MSP430F5171, MSP430F5151, MSP430F5131 SLAS619R – AUGUST 2010 – REVISED SEPTEMBER 2018 MSP430F51x2, MSP430F51x1 Mixed-Signal Microcontrollers 1 Device Overview 1.1 Features 1 • Low Supply-Voltage Range: 3.6 V Down to 1.8 V • Ultra-Low Power Consumption – Active Mode (AM): 180 µA/MHz – Standby Mode (LPM3 WDT Mode, 3 V): 1.1 µA – Off Mode (LPM4 RAM Retention, 3 V): 0.9 µA – Shutdown Mode (LPM4.5, 3 V): 0.
