PTR08060W Datasheet - Texas Instruments

PTR08060W, SWITCHING REGULATOR

The PTR08060W is a highly integrated, low-cost switching regulator module that delivers up to 6 A of output current. Occupying approximate PCB area of a standard TO-220 linear regulator IC, the PTR08060W provides output current at a much higher efficiency and with much less power dissipation, thereb.

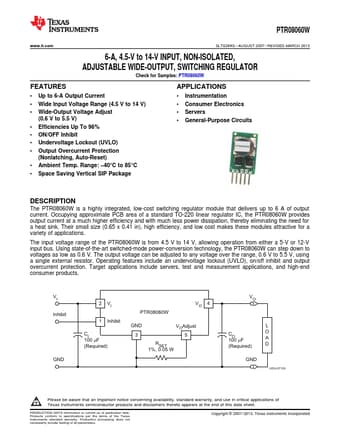

 Datasheet Preview Page 1

PTR08060W-etcTI.pdf

Preview of PTR08060W PDF

Datasheet Details

Part number:

PTR08060W

Manufacturer:

Texas Instruments ↗

File Size:

380.90 KB

Description:

SWITCHING REGULATOR

PTR08060W Features

* 1

* Up to 6-A Output Current

* Wide Input Voltage Range (4.5 V to 14 V)

* Wide-Output Voltage Adjust (0.6 V to 5.5 V)

* Efficiencies Up To 96%

* ON/OFF Inhibit

* Undervoltage Lockout (UVLO)

* Output Overcurrent Protection (Nonlatching, Auto-Res
