SN74ALVCH16821 Datasheet - Texas Instruments

SN74ALVCH16821, 3.3-V 20-BIT BUS-INTERFACE FLIP-FLOP

ORDERING INFORMATION This 20-bit bus-interface flip-flop is designed for 1.65-V to 3.6-V VCC operation. The SN74ALVCH16821 can be used as two 10-bit flip-flops or one 20-bit flip-flop. The 20 flip-flops are edge-triggered D-type flip-flops. On the positive transition of the clock (CLK) input, the de.

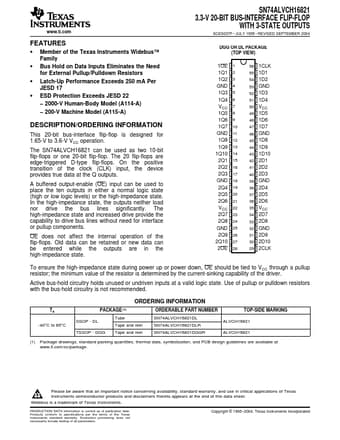

Datasheet Preview Page 1

SN74ALVCH16821-etcTI.pdf

Preview of SN74ALVCH16821 PDF
SN74ALVCH16821 Datasheet Preview Page 2 SN74ALVCH16821 Datasheet Preview Page 3

Datasheet Details

Part number:

SN74ALVCH16821

Manufacturer:

Texas Instruments ↗

File Size:

1.08 MB

Description:

3.3-V 20-BIT BUS-INTERFACE FLIP-FLOP

SN74ALVCH16821 Features

* Member of the Texas Instruments Widebus™ Family

* Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors

* Latch-Up Performance Exceeds 250 mA Per JESD 17

* ESD Protection Exceeds JESD 22

* 2000-V Human-Body Model (A114-A)
