SN74HCS237 Datasheet - Texas Instruments

SN74HCS237, 3- to 8-Line Decoder/Demultiplexer

The SN74HCS237 is a three to eight decoder with latched address inputs, one standard output strobe (G0), and one active low output strobe (G 1). When the latch enable (LE) input is low, the device acts as a standard three to eight decoder. When the latch enable (LE) input is high, the address latch .

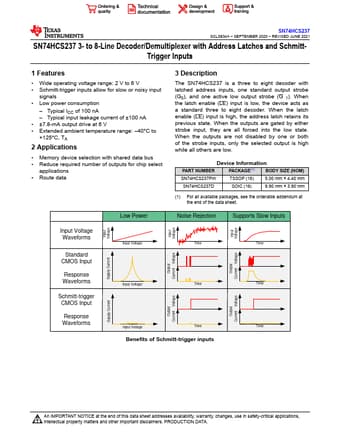

Datasheet Preview Page 1

SN74HCS237-etcTI.pdf

SN74HCS237 Datasheet Preview — Preview of SN74HCS237 PDF

SN74HCS237 Datasheet Preview Page 2

SN74HCS237 Datasheet Preview Page 3

Datasheet Details

Part number:

SN74HCS237

Manufacturer:

Texas Instruments ↗

File Size:

1.01 MB

Description:

3- to 8-Line Decoder/Demultiplexer

SN74HCS237 Features

* Wide operating voltage range: 2 V to 6 V

* Schmitt-trigger inputs allow for slow or noisy input signals

* Low power consumption

* Typical ICC of 100 nA

* Typical input leakage current of ±100 nA

* ±7.8-mA output drive at 6 V

* Extended ambien
