SN75FC1000 - 1-GIGABIT FIBRE CHANNEL TRANSCEIVER

Description

The SN75FC1000 fibre channel transceiver provides for ultra high-speed bidirectional point-to-point data transmission.

This device supports the ANSI X3T11 Fibre Channel standard and the functional and timing requirements of the proposed 10-bit interface specification generated by ANSI X3T11.

📥 Download Datasheet

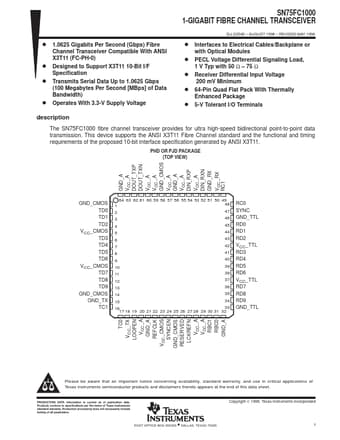

Datasheet preview – SN75FC1000

Datasheet Details

Part number SN75FC1000
Manufacturer Texas Instruments
File Size 279.96 KB
Description 1-GIGABIT FIBRE CHANNEL TRANSCEIVER
Datasheet download datasheet SN75FC1000 Datasheet
Additional preview pages of the SN75FC1000 datasheet.

📁 Similar Datasheet

  • SN7500 - Pulse Width Modulation (KODENSHI)
  • SN7500P - Pulse Width Modulation (KODENSHI)
  • SN75173 - Quad EIA-485 Line Receivers (Motorola)
  • SN75175 - QUAD EIA-485 LINE RECEIVER (Motorola)
  • SN75175 - Quad EIA-485 Line Receivers (Motorola)
  • SN75175D - QUAD EIA-485 LINE RECEIVER (Motorola)
  • SN75175N - QUAD EIA-485 LINE RECEIVER (Motorola)
  • SN75176B - Multipoint RS-485/RS-422 Transceivers (UMW)
  • SN75451 - (SN75451 - SN75454) Dual Peripheral Drivers (Motorola Semiconductor)
  • SN75452 - (SN75451 - SN75454) Dual Peripheral Drivers (Motorola Semiconductor)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text
SN75FC1000 1-GIGABIT FIBRE CHANNEL TRANSCEIVER D 1.0625 Gigabits Per Second (Gbps) Fibre Channel Transceiver Compatible With ANSI X3T11 (FC-PH-0) D Designed to Support X3T11 10-Bit I/F Specification D Transmits Serial Data Up to 1.0625 Gbps (100 Megabytes Per Second [MBps] of Data Bandwidth) D Operates With 3.3-V Supply Voltage SLLS254E – AUGUST 1996 – REVISED MAY 1998 D Interfaces to Electrical Cables/Backplane or with Optical Modules D PECL Voltage Differential Signaling Load, 1 V Typ with 50 Ω – 75 Ω D Receiver Differential Input Voltage 200 mV Minimum D 64-Pin Quad Flat Pack With Thermally Enhanced Package D 5-V Tolerant I/O Terminals description The SN75FC1000 fibre channel transceiver provides for ultra high-speed bidirectional point-to-point data transmission.
