TL074A - Low-Noise JFET-Input Operational Amplifiers

Download the TL074A datasheet PDF. This datasheet also covers the TL071 variant, as both devices belong to the same low-noise jfet-input operational amplifiers family and are provided as variant models within a single manufacturer datasheet.

General Description

The TL071H, TL072H, and TL074H (TL07xH) family of devices are next-generation versions of the industry-standard TL071, TL072, and TL074 (TL07x) devices.

Key Features

  • High slew rate: 20V/μs (TL07xH, typ).
  • Low offset voltage: 1mV (TL07xH, typ).
  • Low offset voltage drift: 2μV/°C.
  • Low power consumption: 940μA/ch (TL07xH, typ).
  • Wide common-mode and differential voltage ranges.
  • Common-mode input voltage range includes VCC+.
  • Low input bias and offset currents.
  • Low noise:.
  • Vn = 37nV/√Hz (typ) at f = 1kHz.
  • Output short-circuit protection.
  • Low total harmonic distortion:.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TL071-etcTI.pdf) that lists specifications for multiple related part numbers.

Full PDF Text Transcription for TL074A (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for TL074A. For precise diagrams, and layout, please refer to the original PDF.

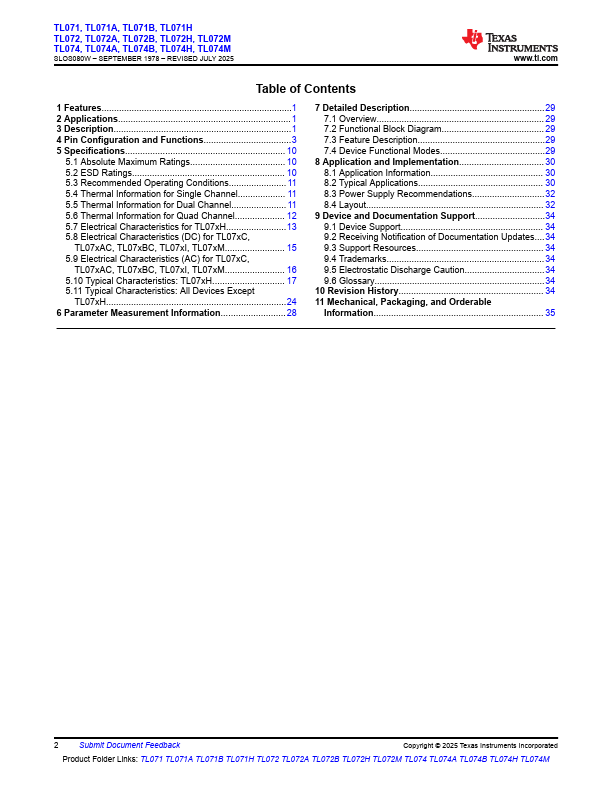

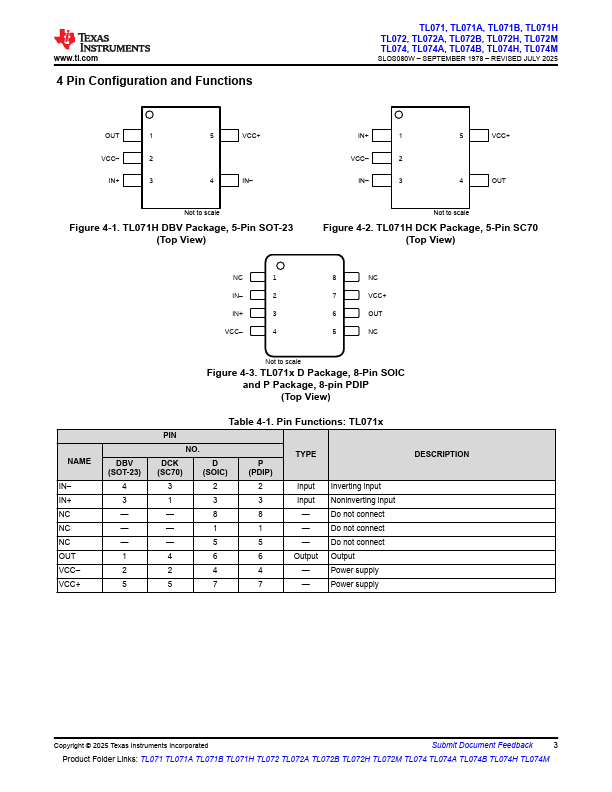

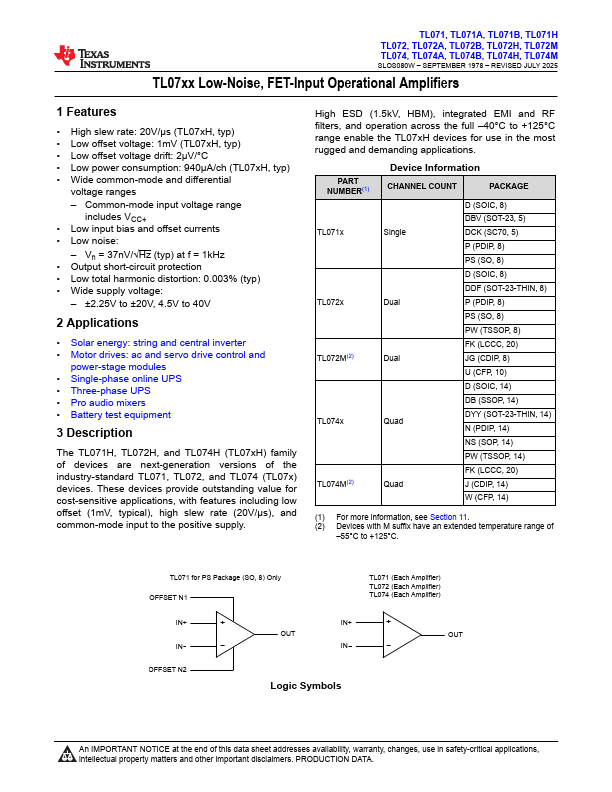

TL071, TL071A, TL071B, TL071H TL072, TL072A, TL072B, TL072H, TL072M TL074, TL074A, TL074B, TL074H, TL074M SLOS080W – SEPTEMBER 1978 – REVISED JULY 2025 TL07xx Low-Noise, ...

View more extracted text
L074M SLOS080W – SEPTEMBER 1978 – REVISED JULY 2025 TL07xx Low-Noise, FET-Input Operational Amplifiers 1 Features • High slew rate: 20V/μs (TL07xH, typ) • Low offset voltage: 1mV (TL07xH, typ) • Low offset voltage drift: 2μV/°C • Low power consumption: 940μA/ch (TL07xH, typ) • Wide common-mode and differential voltage ranges – Common-mode input voltage range includes VCC+ • Low input bias and offset currents • Low noise: – Vn = 37nV/√Hz (typ) at f = 1kHz • Output short-circuit protection • Low total harmonic distortion: 0.003% (typ) • Wide supply voltage: – ±2.25V to ±20V, 4.
