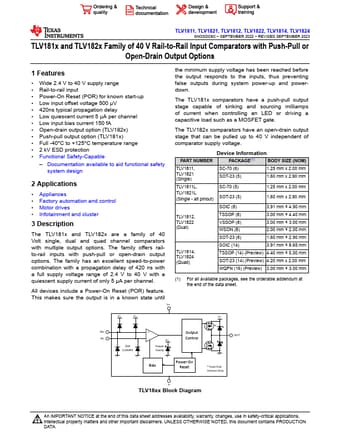

TLV1814 Datasheet | Texas Instruments

Features - Wide 2.4 V to 40 V supply range - Rail-to-rail input - Power-On Reset (POR) for known start-up - Low input offset voltage 500 μV - 420ns typical propagation delay - Low quiescent current 5 μA per channel - Low input bias current 150 f A - Open-drain output option (TLV182x) - Push-pull output option (TLV181x) - Full -40°C to +125°C temperature range - 2 k V ESD protection - Functional Safety-Capable - Documentation available to aid functional safety system design 2 Applications - Appliances - Factory automation and control - Motor drives - Infotainment and cluster 3 Description The TLV181x and TLV182x are a family of 40 Volt single, dual and quad channel parators with multiple output options. The family offers railto-rail inputs with push-pull or open-drain output options. The family has an excellent speed-to-power bination with a propagation delay of 420 ns with a full supply voltage range of 2.4 V to 40 V with a quiescent supply current of only 5 μA per channel. All devices include a Power-On Reset (POR) feature . This makes sure the output is in a known state until the minimum supply voltage has been reached before the output responds to the inputs, thus preventing false outputs during system power-up and powerdown. The TLV181x parators have a push-pull output stage capable of sinking and sourcing milliamps of current when controlling an LED or driving a capacitive load such as a MOSFET gate. The TLV182x parators have an open-drain output stage that can be pulled up to 40 V independent of parator supply voltage. Device Information PART NUMBER PACKAGE(1) BODY SIZE (NOM) TLV1811, TLV1821 (Single) SC-70 (6) SOT-23 (5) 1.25 mm x 2.00 mm 1.60 mm x 2.90 mm TLV1811L, TLV1821L (Single - alt pinout) SC-70 (5) SOT-23 (5) 1.25 mm x 2.00 mm 1.60 mm x 2.90 mm SOIC (8) 3.91 mm × 4.90 mm TLV1812, TLV1822 (Dual) TSSOP (8) VSSOP (8) WSON...
