TLV70130 Datasheet - Texas Instruments

TLV70130, 24-V Input Voltage 150-mALow-Dropout Regulators

The TLV701xx series of low-dropout (LDO) regulators are ultralow quiescent current devices designed for extremely power-sensitive applications. Quiescent current is virtually constant over the complete load current and ambient temperature range. These devices are an ideal power management attachment.

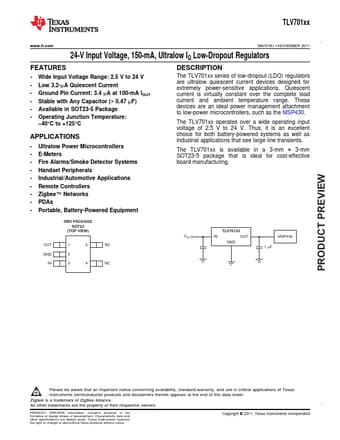

Datasheet Preview Page 1

TLV70130-etcTI.pdf

Preview of TLV70130 PDF
TLV70130 Datasheet Preview Page 2 TLV70130 Datasheet Preview Page 3

Datasheet Details

Part number:

TLV70130

Manufacturer:

Texas Instruments ↗

File Size:

643.73 KB

Description:

24-V Input Voltage 150-mALow-Dropout Regulators

TLV70130 Features

* 1

* 23 Wide Input Voltage Range: 2.5 V to 24 V

* Low 3.2-μA Quiescent Current

* Ground Pin Current: 3.4 μA at 100-mA IOUT

* Stable with Any Capacitor (> 0.47 μF)

* Available in SOT23-5 Package

* Operating Junction Temperature:

* 40°C to +125°C AP

TLV70130 Distributors
