TPS62056 - 800-mA Synchronous Step-Down Converter

Download the TPS62056 datasheet PDF (TPS62050 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 800-ma synchronous step-down converter.

Description

The TPS6205x devices are a family of high-efficiency synchronous step-down DC-DC converters that are ideally suited for systems powered from a 1- or 2-cell Li-Ion battery or from a 3- to 5-cell NiCd, NiMH, or alkaline battery.

Features

  • 1 High-Efficiency Synchronous Step-Down Converter With up to 95% Efficiency.
  • 12-µA Quiescent Current (Typical).
  • 2.7-V to 10-V Operating Input Voltage Range.
  • Adjustable Output Voltage Range: 0.7 V to 6 V.
  • Fixed Output Voltage Options Available With 1.5 V, 1.8 V, and 3.3 V.
  • Synchronizable to External Clock: Up to 1.2 MHz.
  • High-Efficiency Over a Wide Load Current Range in Power-Save Mode.
  • 100% Maximum Duty Cycle for Lowest Drop.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TPS62050-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • TPS621 - NPN Photo Transistor (Toshiba Semiconductor)
  • TPS622 - Silicon NPN Transistor (Toshiba Semiconductor)
  • TPS622F - Silicon NPN Transistor (Toshiba Semiconductor)
  • TPS625 - NPN Photo Transistor (Toshiba Semiconductor)
  • TPS626 - NPN Photo Transistor (Toshiba Semiconductor)
  • TPS603A - Photo Transistor (Toshiba Semiconductor)
  • TPS604 - POWER SCHOTTKY RECTIFIER (STMicroelectronics)
  • TPS606 - TERMINAL OPTO-ELECTRONIC SWITCH (Toshiba Semiconductor)
  • TPS60LB - SWITCHING MODE 60W LOW COST BOX TYPE POWER SUPPLY (Total Power International)
  • TPS611 - Phototransistor (Toshiba)
Other Datasheets by Texas Instruments
  • TPS62050 - 800-mA Synchronous Step-Down Converter
  • TPS62051 - 800-mA Synchronous Step-Down Converter
  • TPS62052 - 800-mA Synchronous Step-Down Converter
  • TPS62054 - 800-mA Synchronous Step-Down Converter
  • TPS62000 - High-Efficiency Step-Down Low Power DC-DC Converter
  • TPS62000-HT - HIGH-EFFICIENCY STEP-DOWN LOW POWER DC-DC CONVERTER
  • TPS62000-Q1 - High-Efficiency Step-Down Low Power DC-DC Converter
  • TPS62001 - High-Efficiency Step-Down Low Power DC-DC Converter

Full PDF Text Transcription

Click to expand full text

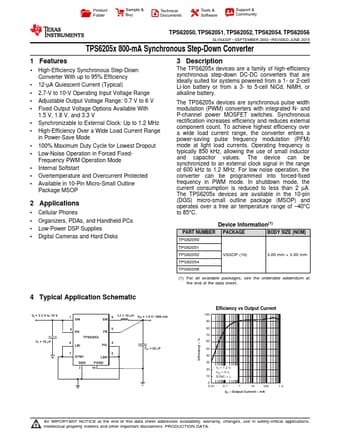

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TPS62050, TPS62051, TPS62052, TPS62054, TPS62056 SLVS432F – SEPTEMBER 2002 – REVISED JUNE 2015 TPS6205x 800-mA Synchronous Step-Down Converter 1 Features •1 High-Efficiency Synchronous Step-Down Converter With up to 95% Efficiency • 12-µA Quiescent Current (Typical) • 2.7-V to 10-V Operating Input Voltage Range • Adjustable Output Voltage Range: 0.7 V to 6 V • Fixed Output Voltage Options Available With 1.5 V, 1.8 V, and 3.3 V • Synchronizable to External Clock: Up to 1.
