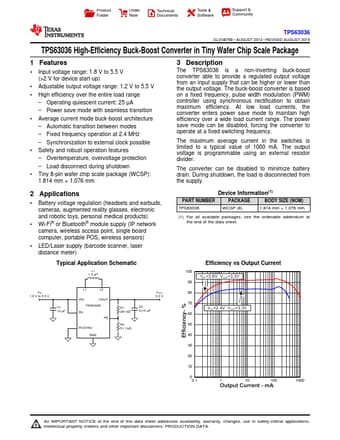

TPS63036
SLVSB76B – AUGUST 2012 – REVISED AUGUST 2019
TPS63036 High-Efficiency Buck-Boost Converter in Tiny Wafer Chip Scale Package
1 Features
1 Input voltage range: 1.8 V to 5.5 V
(>2 V for device start-up)
• Adjustable output voltage range: 1.2 V to 5.5 V
• High efficiency over the entire load range
– Operating quiescent current: 25 µA
– Power save mode with seamless transition
• Average current mode buck-boost architecture
– Automatic transition between modes
– Fixed frequency operation at 2.4 MHz
– Synchronization to external clock possible
• Safety and robust operation features
– Overtemperature, overvoltage protection
– Load disconnect during shutdown
• Tiny 8-pin wafer chip scale package (WCSP):
1.814 mm × 1.076 mm
3 Description
The TPS63036 is a non-inverting buck-boost
converter able to provide a regulated output voltage
from an input supply that can be higher or lower than
the output voltage. The buck-boost converter is based
on a fixed frequency, pulse width modulation (PWM)
controller using synchronous rectification to obtain
maximum efficiency. At low load currents, the
converter enters power save mode to maintain high
efficiency over a wide load current range. The power
save mode can be disabled, forcing the converter to
operate at a fixed switching frequency.
The maximum average current in the switches is
limited to a typical value of 1000 mA. The output
voltage is programmable using an external resistor
divider.
The converter can be disabled to minimize battery
drain. During shutdown, the load is disconnected from
the supply.
2 Applications
• Battery voltage regulation (headsets and earbuds,
cameras, augmented reality glasses, electronic
and robotic toys, personal medical products)
• Wi-Fi® or Bluetooth® module supply (IP network
camera, wireless access point, single board
computer, portable POS, wireless sensors)
• LED/Laser supply (barcode scanner, laser
distance meter)
Typical Application Schematic
L1
1.5 µH
VIN
1.8 V to 5.5 V
C1
10 µF
L1 L2
VIN VOUT
TPS63036
EN
FB
PS/SYNC
GND
VOUT
3.3 V
R1
287
C2
3×10 µF
R2
51.1
Device Information(1)
PART NUMBER
PACKAGE
BODY SIZE (NOM)
TPS63036
WCSP (8)
1.814 mm × 1.076 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Efficiency vs Output Current
100
V =3.6V V =3.3V
IN OUT
90
80
70
V =2.4V V =3.3V
IN OUT
60
50
40
30
20
10
0
0.1 1 10 100 1000
Output Current - mA
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.




etcTI

TPS63036 Datasheet Preview

TPS63036 Datasheet

High-Efficiency Buck-Boost Converter

No Preview Available !

TPS63036
SLVSB76B – AUGUST 2012 – REVISED AUGUST 2019
www.ti.com
Table of Contents
1 Features .................................................................. 1
2 Applications ........................................................... 1
3 Description ............................................................. 1
4 Revision History..................................................... 2
5 Pin Configuration and Functions ......................... 3
6 Specifications......................................................... 3
6.1 Absolute Maximum Ratings ...................................... 3
6.2 ESD Ratings.............................................................. 3
6.3 Recommended Operating Conditions....................... 3
6.4 Thermal Information .................................................. 4
6.5 Electrical Characteristics........................................... 4
6.6 Typical Characteristics .............................................. 5
7 Detailed Description .............................................. 6
7.1 Overview ................................................................... 6
7.2 Functional Block Diagram ......................................... 6
7.3 Feature Description................................................... 6
7.4 Device Functional Modes.......................................... 7
8 Application and Implementation ........................ 10
8.1 Application Information............................................ 10
8.2 Typical Application ................................................. 10
9 Power Supply Recommendations...................... 17
10 Layout................................................................... 17
10.1 Layout Guidelines ................................................. 17
10.2 Layout Example .................................................... 17
10.3 Thermal Considerations ........................................ 17
11 Device and Documentation Support ................. 18
11.1 Device Support...................................................... 18
11.2 Community Resources.......................................... 18
11.3 Trademarks ........................................................... 18
11.4 Electrostatic Discharge Caution ............................ 18
11.5 Glossary ................................................................ 18
12 Mechanical, Packaging, and Orderable
Information ........................................................... 18
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision A (August 2015) to Revision B
Page
• Updated Features and Applications ....................................................................................................................................... 1
• Corrected the body size in Features and the Device Information table ................................................................................. 1
• Corrected efficiency graph ..................................................................................................................................................... 1
• Removed hints to fixed output voltage versions (for example, in the Pin Functions table).................................................... 3
Changes from Original (August 2012) to Revision A
Page
• Added ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation
section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and
Mechanical, Packaging, and Orderable Information section ................................................................................................. 1
• Removed Available Output Voltage Options table ................................................................................................................. 3
• Removed Packaging Information section ............................................................................................................................ 17
2 Submit Documentation Feedback
Product Folder Links: TPS63036
Copyright © 2012–2019, Texas Instruments Incorporated
