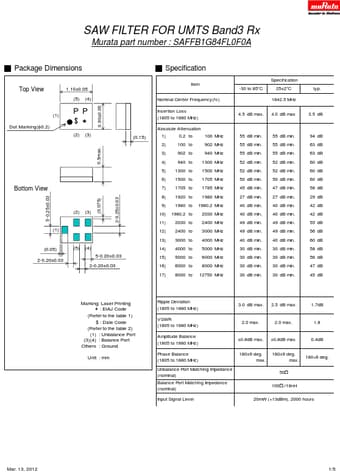

SAW FILTER FOR UMTS Band3 Rx
Murata part number : SAFFB1G84FL0F0A
Package Dimensions
Specification
0.90±0.05
Top View
1.10±0.05 (5) (4)
(1) Dot Marking(0.2)
PP $
(2) (3)
0.5max.
Bottom View
(0.075) 2-0.25±0.03
5-0.25±0.03
(2) (3)
(1)
(0.05) 2-0.20±0.03
(5) (4) 5-0.20±0.03
2-0.20±0.03
(0.15)
Item
Nominal Center Frequency(fc)
Insertion Loss (1805 to 1880 MHz)
Absolute Attenuation
1)
0.2 to 100 MHz
2) 100 to 902 MHz
3) 902 to 940 MHz
4) 940 to 1300 MHz
5) 1300 to 1500 MHz
6) 1500 to 1705 MHz
7) 1705 to 1785 MHz
8) 1920 to 1980 MHz
9) 1980 to 1980.2 MHz
10) 1980.
SAFFB1G84FL0F0A Datasheet
