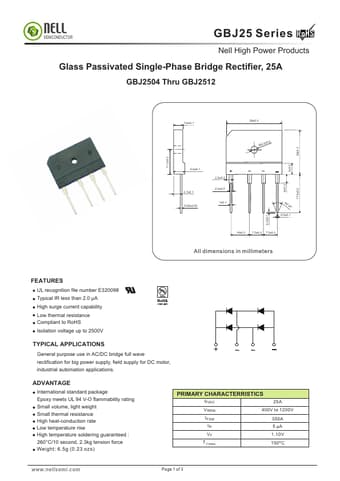

SEMICONDUCTOR
GBJ25 Series RRooHHSS
Nell High Power Products
Glass Passivated Single-Phase Bridge Rectifier, 25A
GBJ2504 Thru GBJ2512
20±0.3
4±0.2 17.5±0.2
3.6±0.1
30±0.3 Ø3.2±0.2
11.2±0.2
5±0.2
4.6±0.1
2.7±0.1 0.65±0.05
+
2.5±0.2 2.2±0.2
1±0.1
~~
60°±5° 0.5±0.1
0.5±0.1
10±0.2 7.5±0.2 7.5±0.2
All dimensions in millimeters
FEATURES
UL recognition file number E320098 Typical IR less than 2.0 µA High surge current capability Low thermal resistance Compliant to RoHS Isolation voltage up to 2500V
TYPICAL APPLICATIONS
General purpose use in AC/DC bridge full wave rectification for big power supply, field supply for DC motor, industrial automation applications.
