74HC1G00-Q100, 2-input NAND gate

The 74HC1G00-Q100; 74HCT1G00-Q100 is a single 2-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and i.

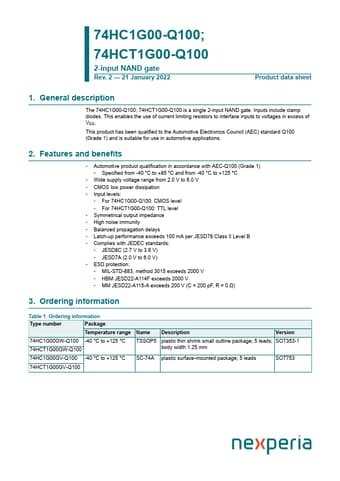

Datasheet Preview Page 1

74HC1G00-Q100-nexperia.pdf

74HC1G00-Q100 Datasheet Preview — Preview of 74HC1G00-Q100 PDF

74HC1G00-Q100 Datasheet Preview Page 2

74HC1G00-Q100 Datasheet Preview Page 3

Datasheet Details

Part number:

74HC1G00-Q100

Manufacturer:

File Size:

200.85 KB

Description:

2-input NAND gate

74HC1G00-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)

* Specified from -40 °C to +85 °C and from -40 °C to +125 °C

* Wide supply voltage range from 2.0 V to 6.0 V

* CMOS low power dissipation

* Input levels:

* For 74HC1G00-Q100: CMOS
