74HC1G86-Q100 - 2-input EXCLUSIVE-OR gate

Description

The 74HC1G86-Q100; 74HCT1G86-Q100 is a single 2-input EXCLUSIVE-OR gate.

Inputs include clamp diodes.

This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Features

  • Automotive product qualification in accordance with AEC-Q100 (Grade 1).
  • Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
  • Wide supply voltage range from 2.0 V to 6.0 V.
  • Input levels:.
  • For 74HC1G86-Q100: CMOS level.
  • For 74HCT1G86-Q100: TTL level.
  • CMOS low power dissipation.
  • High noise immunity.
  • Symmetrical output impedance.
  • Balanced propagation delays.
  • Latch-up performance exceeds 100 mA.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

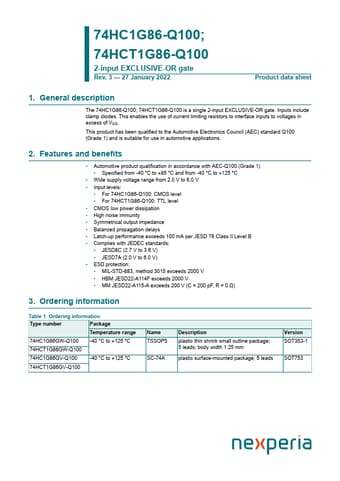

74HC1G86-Q100; 74HCT1G86-Q100 2-input EXCLUSIVE-OR gate Rev. 3 — 27 January 2022 Product data sheet 1. General description The 74HC1G86-Q100; 74HCT1G86-Q100 is a single 2-input EXCLUSIVE-OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications. 2. Features and benefits • Automotive product qualification in accordance with AEC-Q100 (Grade 1) • Specified from -40 °C to +85 °C and from -40 °C to +125 °C • Wide supply voltage range from 2.0 V to 6.
