74HC2G32 Datasheet - nexperia

74HC2G32, Dual 2-input OR gate

.

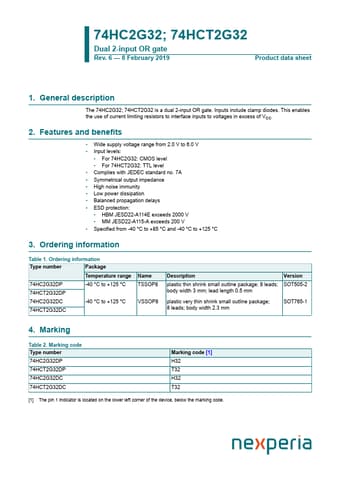

Datasheet Preview Page 1

74HC2G32-nexperia.pdf

74HC2G32 Datasheet Preview — Preview of 74HC2G32 PDF

74HC2G32 Datasheet Preview Page 2

74HC2G32 Datasheet Preview Page 3

Datasheet Details

Part number:

74HC2G32

Manufacturer:

File Size:

201.99 KB

Description:

Dual 2-input OR gate

74HC2G32 Features

* Wide supply voltage range from 2.0 V to 6.0 V

* Input levels:

* For 74HC2G32: CMOS level

* For 74HCT2G32: TTL level

* Complies with JEDEC standard no. 7A

* Symmetrical output impedance

* High noise immunity

* Low power dissipation
