74HC4060D Datasheet 14-stage binary ripple counter

Manufacturer: Nexperia

Download the 74HC4060D datasheet PDF. This datasheet also includes the 74HC4060 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (74HC4060-nexperia.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 74HC4060D
Manufacturer Nexperia
File Size 317.12 KB
Description 14-stage binary ripple counter
Datasheet download datasheet 74HC4060D Datasheet

General Description

The 74HC4060;

74HCT4060 is a 14-stage ripple-carry counter/divider and oscillator with three oscillator terminals (RS, RTC and CTC), ten buffered parallel outputs (Q3 to Q9 and Q11 to Q13) and an overriding asynchronous master reset (MR).

The oscillator configuration allows design of either RC or crystal oscillator circuits.

Overview

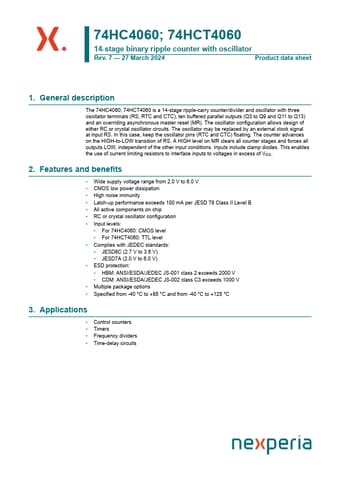

74HC4060; 74HCT4060 14-stage binary ripple counter with oscillator Rev.

7 — 27 March 2024 Product data sheet 1.

Key Features

  • Wide supply voltage range from 2.0 V to 6.0 V.
  • CMOS low power dissipation.
  • High noise immunity.
  • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
  • All active components on chip.
  • RC or crystal oscillator configuration.
  • Input levels:.
  • For 74HC4060: CMOS level.
  • For 74HCT4060: TTL level.
  • Complies with JEDEC standards:.
  • JESD8C (2.7 V to 3.6 V).
  • JESD7A (2.0 V to 6.0 V).
