74HCT1G02 - 2-input NOR gate

Download the 74HCT1G02 datasheet PDF (74HC1G02 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 2-input nor gate.

Description

The74HC1G02; 74HCT1G02 is a single 2-input NOR gate.

Inputs include clamp diodes.

This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Features

  • Wide supply voltage range from 2.0 V to 6.0 V.
  • CMOS low power dissipation.
  • Symmetrical output impedance.
  • High noise immunity.
  • Balanced propagation delays.
  • Input levels:.
  • For 74HC1G02: CMOS level.
  • For 74HCT1G02: TTL level.
  • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
  • Complies with JEDEC standards:.
  • JESD8C (2.7 V to 3.6 V).
  • JESD7A (2.0 V to 6.0 V).
  • ESD protecti.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (74HC1G02-nexperia.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

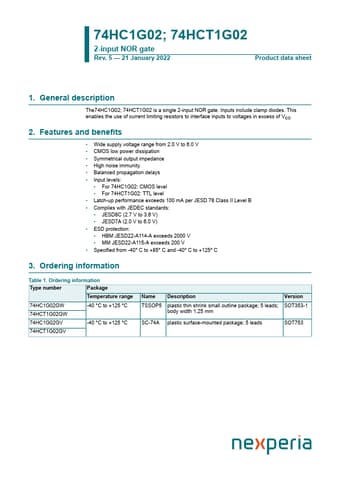

74HC1G02; 74HCT1G02 2-input NOR gate Rev. 5 — 21 January 2022 Product data sheet 1. General description The74HC1G02; 74HCT1G02 is a single 2-input NOR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. 2. Features and benefits • Wide supply voltage range from 2.0 V to 6.0 V • CMOS low power dissipation • Symmetrical output impedance • High noise immunity • Balanced propagation delays • Input levels: • For 74HC1G02: CMOS level • For 74HCT1G02: TTL level • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B • Complies with JEDEC standards: • JESD8C (2.7 V to 3.6 V) • JESD7A (2.0 V to 6.
