74HCT4046A - Phase-locked loop

Download the 74HCT4046A datasheet PDF (74HC4046A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for phase-locked loop.

Description

The 74HC4046A; 74HCT4046A is a high-speed Si-gate CMOS device.

It is specified in compliance with JEDEC standard no 7A.

2.

Features

  • Low power consumption.
  • VCO-Inhibit control for ON/OFF keying and for low standby power consumption.
  • Center frequency up to 17 MHz (typical) at VCC = 4.5 V.
  • Choice of three phase comparators:.
  • PC1:.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (74HC4046A-nexperia.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

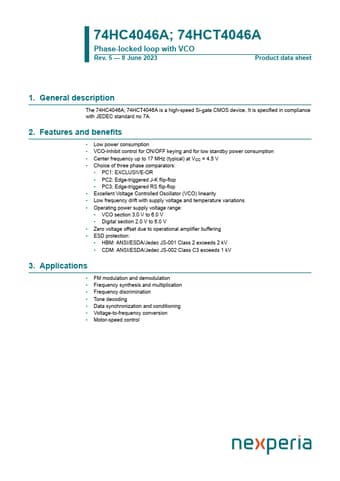

74HC4046A; 74HCT4046A Phase-locked loop with VCO Rev. 5 — 8 June 2023 Product data sheet 1. General description The 74HC4046A; 74HCT4046A is a high-speed Si-gate CMOS device. It is specified in compliance with JEDEC standard no 7A. 2. Features and benefits • Low power consumption • VCO-Inhibit control for ON/OFF keying and for low standby power consumption • Center frequency up to 17 MHz (typical) at VCC = 4.5 V • Choice of three phase comparators: • PC1: EXCLUSIVE-OR • PC2: Edge-triggered J-K flip-flop • PC3: Edge-triggered RS flip-flop • Excellent Voltage Controlled Oscillator (VCO) linearity • Low frequency drift with supply voltage and temperature variations • Operating power supply voltage range: • VCO section 3.0 V to 6.0 V • Digital section 2.0 V to 6.
