74LVCH244A-Q100 - Octal buffer/line driver

Download the 74LVCH244A-Q100 datasheet PDF (74LVC244A-Q100 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for octal buffer/line driver.

Description

The 74LVC244A-Q100; 74LVCH244A-Q100 is an octal non-inverting buffer/line driver with 3-state outputs.

The 3-state outputs are controlled by the output enable inputs 1OE and 2OE.

A HIGH on nOE causes the outputs to assume a high-impedance OFF-state.

Features

  • Automotive product qualification in accordance with AEC-Q100 (Grade 1).
  • Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
  • 5 V tolerant inputs/outputs for interfacing with 5 V logic.
  • Wide supply voltage range from 1.2 V to 3.6 V.
  • CMOS low-power consumption.
  • Direct interface with TTL levels.
  • Inputs accept voltages up to 5.5 V.
  • High-impedance when VCC = 0 V.
  • Bus hold on all data inputs (74LVCH244A-Q100 only).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (74LVC244A-Q100-nexperia.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

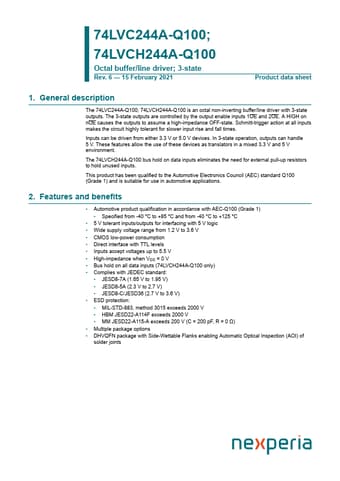

74LVC244A-Q100; 74LVCH244A-Q100 Octal buffer/line driver; 3-state Rev. 6 — 15 February 2021 Product data sheet 1. General description The 74LVC244A-Q100; 74LVCH244A-Q100 is an octal non-inverting buffer/line driver with 3-state outputs. The 3-state outputs are controlled by the output enable inputs 1OE and 2OE. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. Schmitt-trigger action at all inputs makes the circuit highly tolerant for slower input rise and fall times. Inputs can be driven from either 3.3 V or 5.0 V devices. In 3-state operation, outputs can handle 5 V. These features allow the use of these devices as translators in a mixed 3.3 V and 5 V environment.
