BAS16H, BAS16 High-speed switching diode

📥 Download Datasheet  Datasheet Preview Page 1

Description

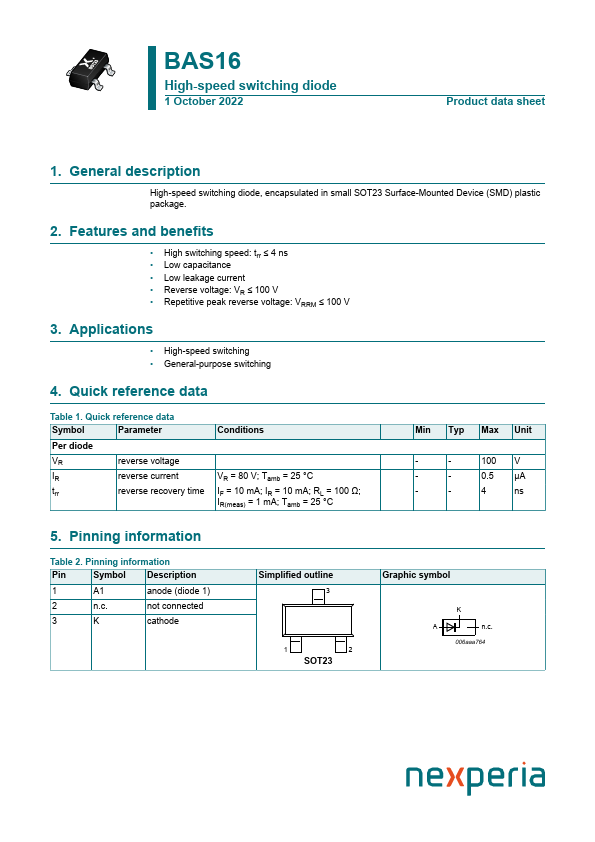

BAS16 High-speed switching diode 1 October 2022 Product data sheet 1.General .
High-speed switching diode, encapsulated in small SOT23 Surface-Mounted Device (SMD) plastic package. High switchi.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAS16H, BAS16. Please refer to the document for exact specifications by model.

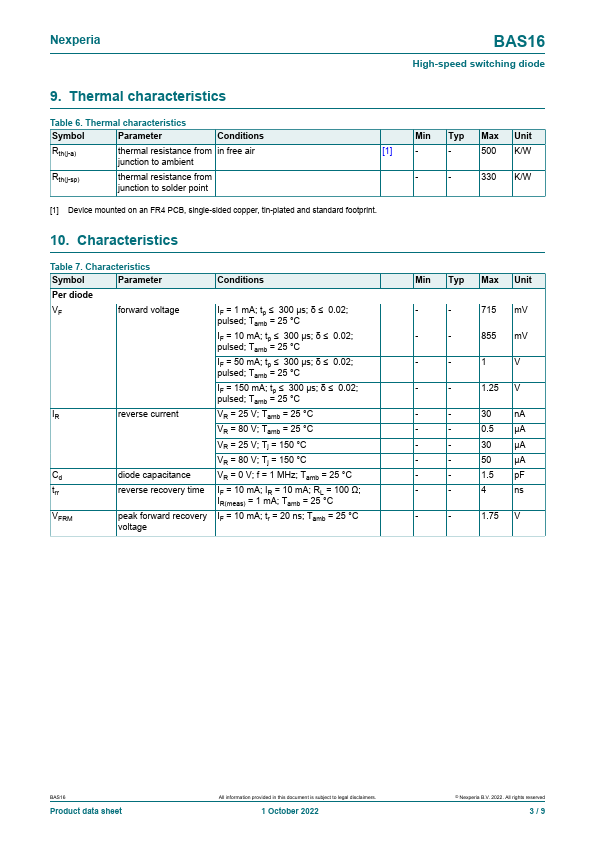

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
BAS16H, BAS16
Manufacturer
nexperia ↗
File Size
252.63 KB
Datasheet
BAS16-nexperia.pdf
Description
High-speed switching diode
Note
This datasheet PDF includes multiple part numbers: BAS16H, BAS16.
Please refer to the document for exact specifications by model.

Features

* High switching speed: trr ≤ 4 ns
* Low capacitance
* Low leakage current
* Reverse voltage: VR ≤ 100 V

Applications

* High-speed switching
* General-purpose switching 4. Quick reference data Table 1. Quick reference data Symbol Parameter Per diode VR reverse voltage IR reverse current trr reverse recovery time Conditions VR = 80 V; Tamb = 25 °C IF = 10 mA; IR = 10 mA; RL = 100 Ω; IR(me
