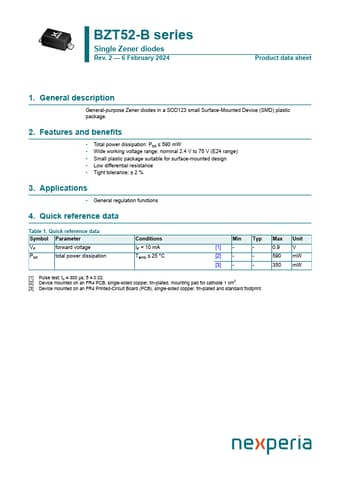

BZT52-B series
Single Zener diodes
Rev. 2 — 6 February 2024
Product data sheet
1. General description
General-purpose Zener diodes in a SOD123 small Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
• Total power dissipation: Ptot ≤ 590 mW • Wide working voltage range: nominal 2.4 V to 75 V (E24 range) • Small plastic package suitable for surface-mounted design • Low differential resistance • Tight tolerance: ± 2 %
3. Applications
• General regulation functions
4. Quick reference data
Table 1. Quick reference data Symbol Parameter
VF
forward voltage
Ptot
total power dissipation
Conditions IF = 10 mA Tamb ≤ 25 °C
Min Typ
[1] -
-
[2] -
-
[3] -
-
[1] [2]
Pulse test: tp ≤ 300 μs; Device mounted on an
δ ≤ 0.02.
