BZT52H-B3V3

Manufacturer: Nexperia

BZT52H-B3V3 datasheet PDF by Nexperia.

This datasheet includes multiple variants, all published together in a single manufacturer document.

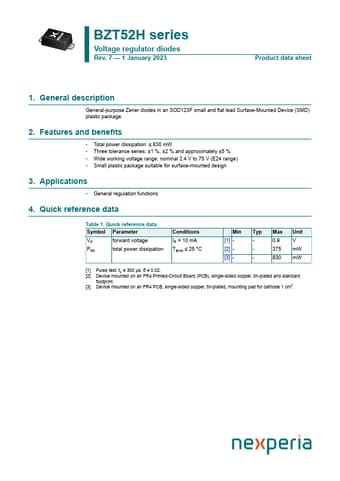

BZT52H-B3V3 datasheet preview

BZT52H-B3V3 Datasheet Details

Part number	BZT52H-B3V3
Datasheet	BZT52H-B3V3 BZT52H-A2V4 Datasheet (PDF)
File Size	328.27 KB
Manufacturer	Nexperia
Description	Voltage regulator diodes

BZT52H-B3V3 Overview

General-purpose Zener diodes in an SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.

BZT52H-B3V3 Key Features

Total power dissipation: ≤ 830 mW
Three tolerance series: ±1 %, ±2 % and approximately ±5 %
Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
Small plastic package suitable for surface-mounted design
