BZV55-B33, BZV55-B2V4 Datasheet - nexperia

BZV55-B33, BZV55-B2V4, Voltage regulator diodes

Low-power voltage regulator diodes in small hermetically sealed glass SOD80C Surface-Mounted Device (SMD) packages. The diodes are available in the normalized E24 2 % (BZV55-B) and approximately 5 % (BZV55-C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V.

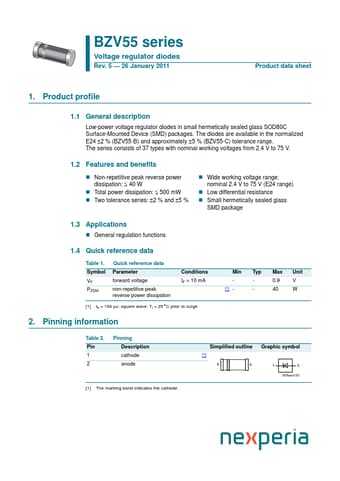

Datasheet Preview Page 1

BZV55-B2V4-nexperia.pdf

This datasheet PDF includes multiple part numbers: BZV55-B33, BZV55-B2V4. Please refer to the document for exact specifications by model.
BZV55-B33 Datasheet Preview Page 2 BZV55-B33 Datasheet Preview Page 3

Datasheet Details

Part number:

BZV55-B33, BZV55-B2V4

Manufacturer:

nexperia ↗

File Size:

684.73 KB

Description:

Voltage regulator diodes

Note:

This datasheet PDF includes multiple part numbers: BZV55-B33, BZV55-B2V4.
Please refer to the document for exact specifications by model.

BZV55-B33 Features

* Non-repetitive peak reverse power dissipation:  40 W

* Total power dissipation:  500 mW

* Two tolerance series: 2 % and 5 %

* Wide working voltage range: nominal 2.4 V to 75 V (E24 range)

* Low differential resistance

* Small hermetically sealed glass SMD package 1.3
