BZX884-C22 - Voltage regulator diodes

Download the BZX884-C22 datasheet PDF (BZX884 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for voltage regulator diodes.

Description

General-purpose Zener diodes in an SOD882 (DFN1006-2) leadless ultra small SurfaceMounted Device (SMD) plastic package.

Features

  • Total power dissipation: Ptot ≤ 250 mW.
  • Wide working voltage range: nominal 2.4 V to 75 V (E24 range).
  • Two tolerance series: ± 2 % and ± 5 %.
  • Leadless ultra small plastic package suitable for surface-mounted design.
  • AEC-Q101 qualified 1.3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZX884-nexperia.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • BZX884 - Voltage regulator diodes (NXP)
  • BZX83C10 - SILIICON PLANAR ZENER DIODES (CDIL)
  • BZX83C10 - SILICON EPITAXIAL PLANAR ZENER DIODES (SEMTECH)
  • BZX83C10RL - 500 mW DO-35 Glass Zener Voltage Regulator Diodes (Motorola Inc)
  • BZX83C11 - SILIICON PLANAR ZENER DIODES (CDIL)
  • BZX83C11 - SILICON EPITAXIAL PLANAR ZENER DIODES (SEMTECH)
  • BZX83C11RL - 500 mW DO-35 Glass Zener Voltage Regulator Diodes (Motorola Inc)
  • BZX83C12 - SILIICON PLANAR ZENER DIODES (CDIL)
  • BZX83C12 - SILICON EPITAXIAL PLANAR ZENER DIODES (SEMTECH)
  • BZX83C12RL - 500 mW DO-35 Glass Zener Voltage Regulator Diodes (Motorola Inc)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

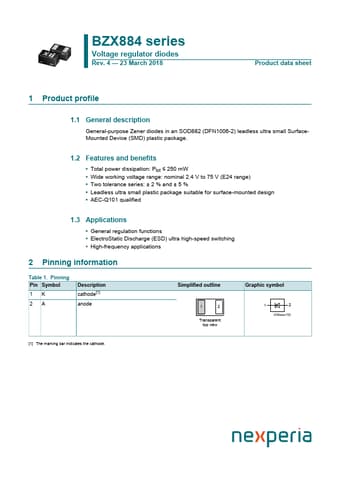

BZX884 series Voltage regulator diodes Rev. 4 — 23 March 2018 Product data sheet 1 Product profile 1.1 General description General-purpose Zener diodes in an SOD882 (DFN1006-2) leadless ultra small SurfaceMounted Device (SMD) plastic package. 1.2 Features and benefits • Total power dissipation: Ptot ≤ 250 mW • Wide working voltage range: nominal 2.4 V to 75 V (E24 range) • Two tolerance series: ± 2 % and ± 5 % • Leadless ultra small plastic package suitable for surface-mounted design • AEC-Q101 qualified 1.3 Applications • General regulation functions • ElectroStatic Discharge (ESD) ultra high-speed switching • High-frequency applications 2 Pinning information Table 1.
