HEF4051B - 8-channel analog multiplexer/demultiplexer

Datasheet Summary

Description

The HEF4051B is an 8-channel analog multiplexer/demultiplexer with three address inputs (S1 to S3), an active LOW enable input (E), eight independent inputs/outputs (Y0 to Y7) and a common input/output (Z).

📥 Download Datasheet

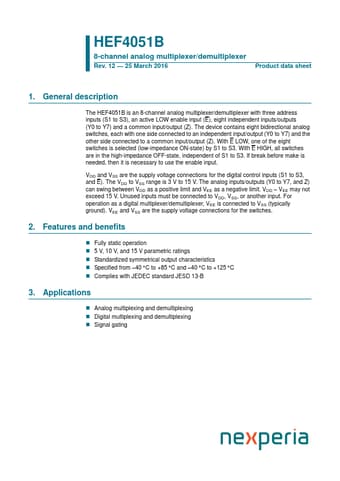

Datasheet preview – HEF4051B

Datasheet Details

Part number HEF4051B
Manufacturer nexperia
File Size 782.09 KB
Description 8-channel analog multiplexer/demultiplexer
Datasheet download datasheet HEF4051B Datasheet
Additional preview pages of the HEF4051B datasheet.

📁 Similar Datasheet

  • HEF4051B - 8-channel analogue multiplexer/demultiplexer (NXP)
  • HEF4050B - HEX non-inverting buffers (NXP)
  • HEF4050B - HEX non-inverting buffers (Philips)
  • HEF4052B - Dual 4-channel analogue multiplexer/demultiplexer (NXP)
  • HEF4052B - Dual 4-channel analogue multiplexer/demultiplexer (Philips)
  • HEF4053B - Triple single-pole double-throw analog switch (NXP)
  • HEF4053B - Triple 2-channel analogue multiplexer/demultiplexer (Philips)
  • HEF4059B - Programmable divide-by-n counter (NXP)
  • HEF4000B - Dual 3-input NOR gate and inverter (NXP)
  • HEF4001B - Quadruple 2-input NOR gate (NXP)
Other Datasheets by nexperia
  • HEF4051B-Q100 - 8-channel analog multiplexer/demultiplexer
  • HEF4050B - Hex non-inverting buffers
  • HEF4050B-Q100 - Hex non-inverting buffers
  • HEF4050BT - Hex non-inverting buffers
  • HEF4052B - Dual 4-channel analog multiplexer/demultiplexer
  • HEF4052B-Q100 - Dual 4-channel analog multiplexer/demultiplexer
  • HEF4052BT - Dual 4-channel analog multiplexer/demultiplexer
  • HEF4053B - Triple single-pole double-throw analog switch

Full PDF Text Transcription

Click to expand full text
HEF4051B 8-channel analog multiplexer/demultiplexer Rev. 12 — 25 March 2016 Product data sheet 1. General description The HEF4051B is an 8-channel analog multiplexer/demultiplexer with three address inputs (S1 to S3), an active LOW enable input (E), eight independent inputs/outputs (Y0 to Y7) and a common input/output (Z). The device contains eight bidirectional analog switches, each with one side connected to an independent input/output (Y0 to Y7) and the other side connected to a common input/output (Z). With E LOW, one of the eight switches is selected (low-impedance ON-state) by S1 to S3. With E HIGH, all switches are in the high-impedance OFF-state, independent of S1 to S3. If break before make is needed, then it is necessary to use the enable input.
